Module I/O Signal

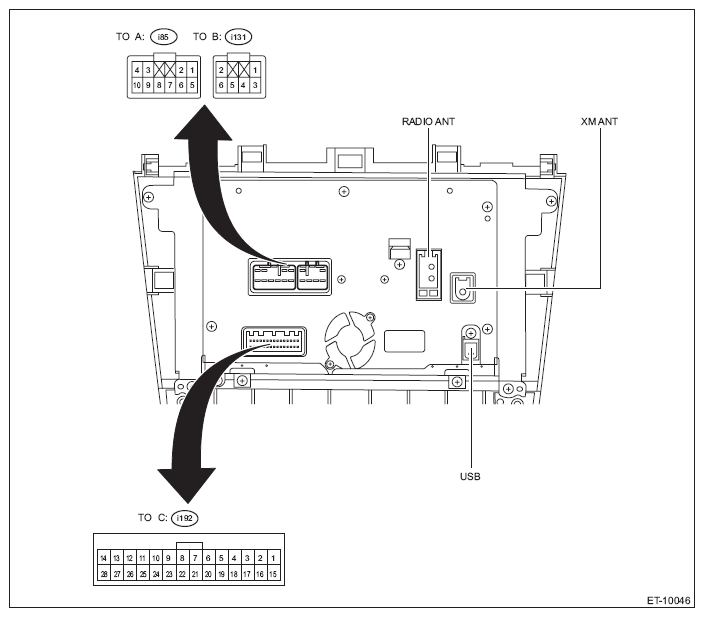

Model with 6.2 inch display
- Power supply and speaker output terminal
Terminal No. Contents Measuring condition Measurement value Note (i85) No. 1 FRONT-RH (+) - - - (i85) No. 2 FRONT-LH (+) - - - (i85) No. 3 ↔ Chassis ground ACC ACC ON 11 - 15 V - (i85) No. 4 ↔ Chassis ground +B Always 11 - 15 V - (i85) No. 5 FRONT-RH (-) - - - (i85) No. 6 FRONT-LH (-) - - - (i85) No. 7 ↔ Chassis ground GND Always 0 V - (i85) No. 8 ANTENNA-ON - - - (i85) No. 9 N.C. - - - (i85) No. 10 ILLUMI (+) - - - (i131) No. 1 REAR-RH (+) - - - (i131) No. 2 REAR-LH (+) - - - (i131) No. 3 REAR-RH (-) - - - (i131) No. 4 N.C. - - - (i131) No. 5 ILLUMI (-) - - - (i131) No. 6 REAR-LH (-) - - - - Steering switch and AUX input terminal for microphone etc.
Terminal No. Contents Measuring condition Measurement value Note (i192) No. 1 N.C. - - - (i192) No. 2 REV - - - (i192) No. 3 BRIGHT - - - (i192) No. 4 MIC+B - - - (i192) No. 5 MIC (+) - - - (i192) No. 6 MIC-DET - - - (i192) No. 7 N.C. - - - (i192) No. 8 N.C. - - - (i192) No. 9 N.C. - - - (i192) No. 10 N.C. - - - (i192) No. 11 CAM + 6 V - - - (i192) No. 12 CV (+) - - - (i192) No. 13 CV (-) (SHIELD) - - - (i192) No. 14 SHIELD-GND (AUX) - - - (i192) No. 15 ↔ Chassis ground PKB At parking ON 1 V or less - (i192) No. 16 N.C. - - - (i192) No. 17 ↔ Chassis ground SPD When the tire is rotating Pulse signal - (i192) No. 18 SHIELD-GND (MIC) - - - (i192) No. 19 MIC (-) - - - (i192) No. 20 GND (CAMERA) - - - (i192) No. 21 SW1 (+) - - - (i192) No. 22 SW2 (+) - - - (i192) No. 23 SW-GND - - - (i192) No. 24 N.C. - - - (i192) No. 25 AUX-ON - - - (i192) No. 26 AUX-R (+) - - - (i192) No. 27 AUX-LR (-) - - - (i192) No. 28 AUX-L (+) - - -
Model with 7 inch display
Refer to "Control Module I/O Signal" in "Navigation System". <Ref. to MODULE I/O SIGNAL , INSPECTION, Navigation System.>
