Front Wiper

Models without EyeSight

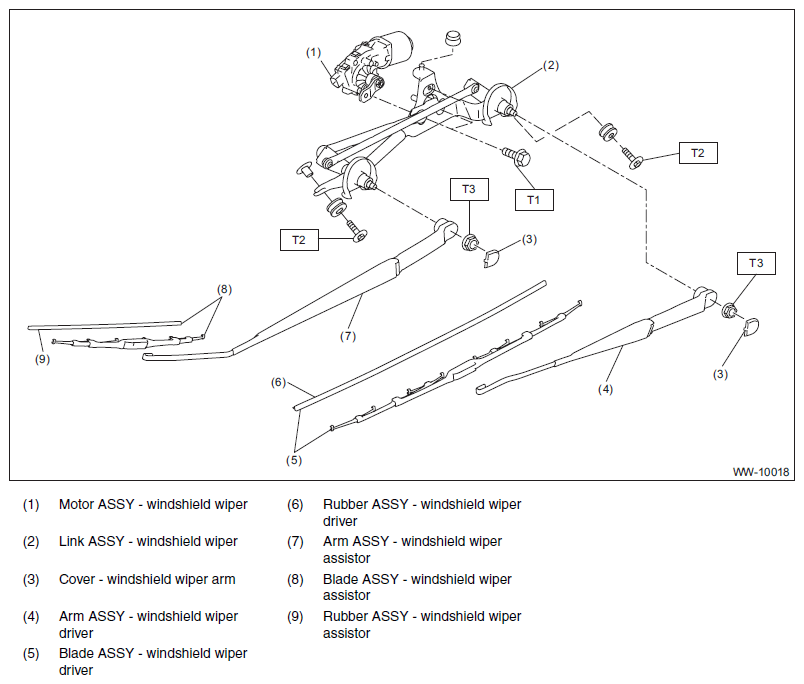

Fig 1: Front Wiper Component With Torque Specification - Models Without Eyesight
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.5 (0.6, 4.1)

T2: 6 (0.6, 4.4)

T3: 26 (2.7, 19.2)
Models with EyeSight

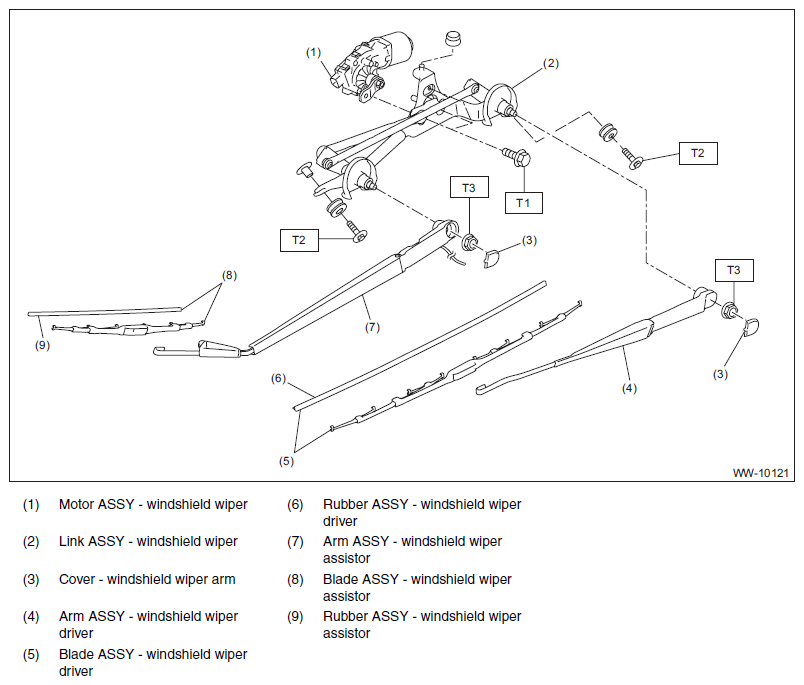

Fig 2: Front Wiper Component With Torque Specification - Models With Eyesight
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.5 (0.6, 4.1)

T2: 6 (0.6, 4.4)

T3: 26 (2.7, 19.2)
