Front Hood Lock Assembly: Removal

1. Open the front hood.
2. Remove the bumper face - front. <Ref. to REMOVAL , Front Bumper.>
3. Remove the bolts and clips, and remove the energy absorber plate - front.

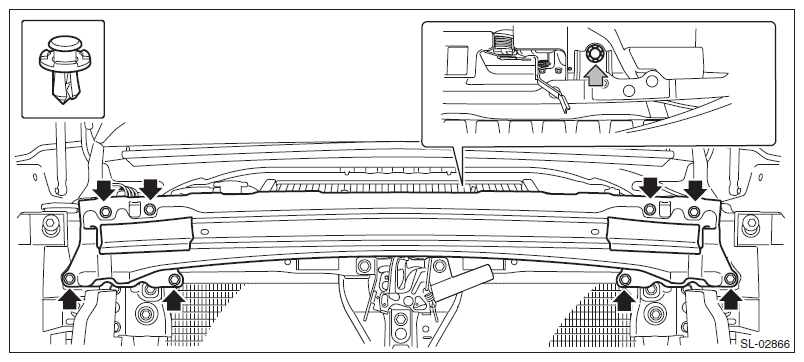

   Fig 1: Locating Front Energy Absorber Plate Bolts And Clips

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the clips, and remove the cover UPR - front.

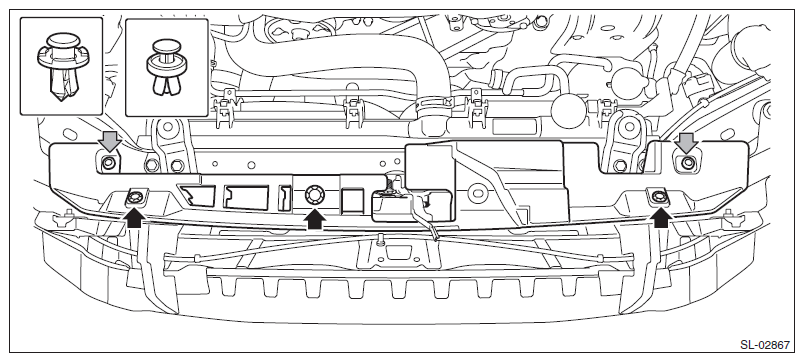

   Fig 2: Removing Front Cover UPR Clips

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the lock assembly - front hood.
   1. Remove the bolt and clip.

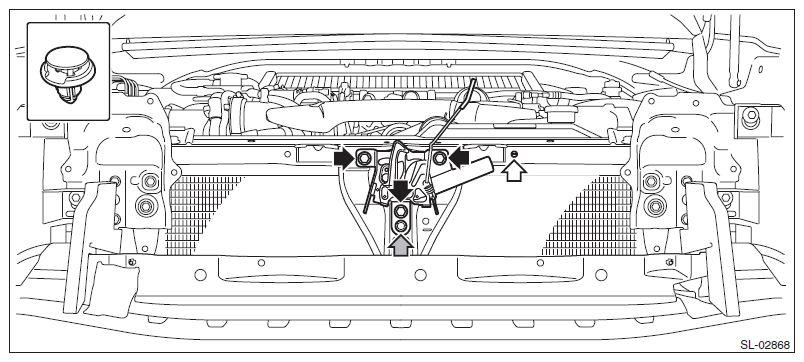

      Fig 3: Locating Front Hood Lock Assembly Bolt And Clip

      Courtesy of SUBARU OF AMERICA, INC.
   2. Disconnect the release cable, and detach the lock assembly - front hood.

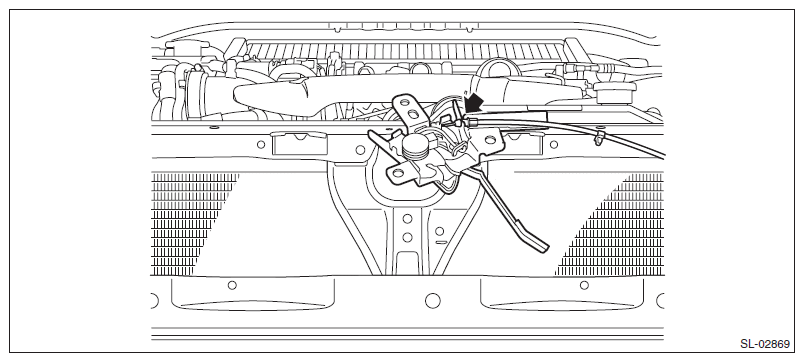

Fig 4: Detaching Front Hood Lock Assembly

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When disconnecting the release cable, refer to "FRONT HOOD OPENER" of "Remote Openers". <Ref. to FRONT HOOD OPENER , REMOVAL, Remote Openers.>
