Model With Keyless Access With Push Button Start

NOTE: Immobilizer antenna is integrated with the push button ignition switch.

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
3. Remove the push button ignition switch.
   1. Disconnect the connector, and remove the aspirator hose.
      Fig 1: Removing Aspirator Hose

      Courtesy of SUBARU OF AMERICA, INC.
   2. Release the claws, and then remove the panel - switch.
   3. Release the claws, and then remove the push button ignition switch from the panel - switch.

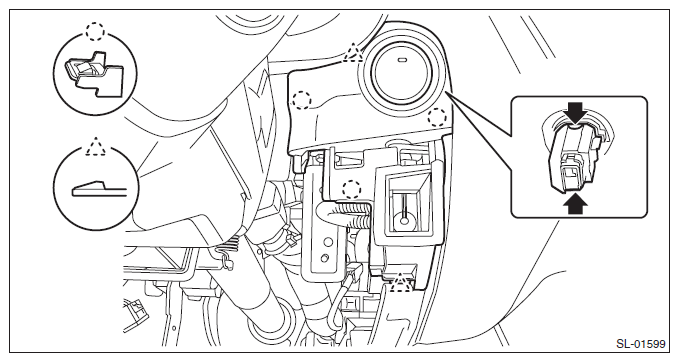

Fig 2: Pushing Switch Button Ignition From Panel

Courtesy of SUBARU OF AMERICA, INC.
