Keyless Buzzer: Installation

  1. Install the keyless buzzer.
  2. Install the mud guard - front.

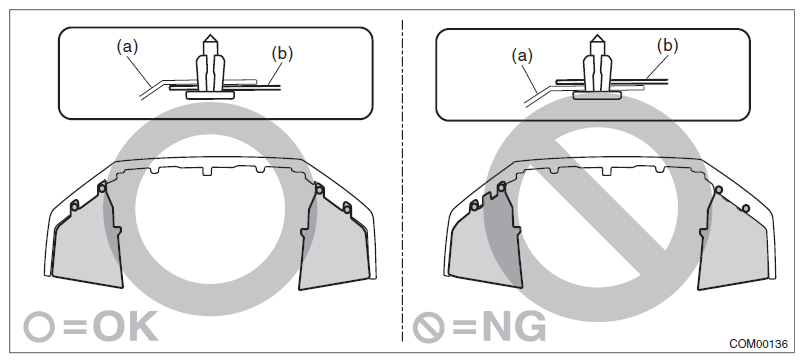

    CAUTION: Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a)  .
    Fig 1: Caution For Installing Front Mud Guard
    G11582915Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air cleaner case.
    • STI model: <Ref. to INSTALLATION , Air Cleaner Case.>
    • Except for STI model: <Ref. to INSTALLATION , Air Cleaner Case.>
  4. Connect the battery ground terminal. <Ref. to BATTERY , NOTE, Note.>
