Keyless Buzzer: Removal

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the air cleaner case.
    • STI model: <Ref. to REMOVAL , Air Cleaner Case.>
    • Except for STI model: <Ref. to REMOVAL , Air Cleaner Case.>
  3. Lift up the vehicle.
  4. Remove the screw and clips, and turn over the mud guard - front on the right side.

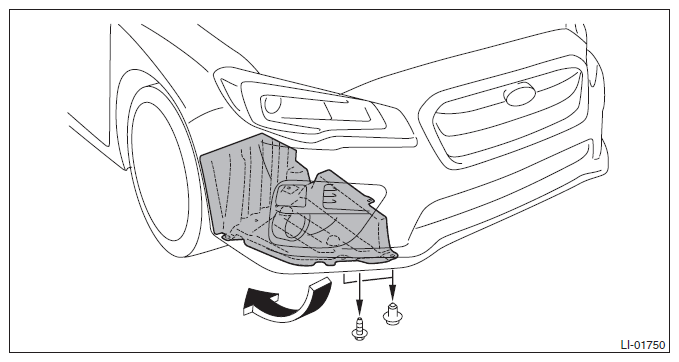

    Fig 1: Turning Over Front Mud Guard
    G11582913Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.

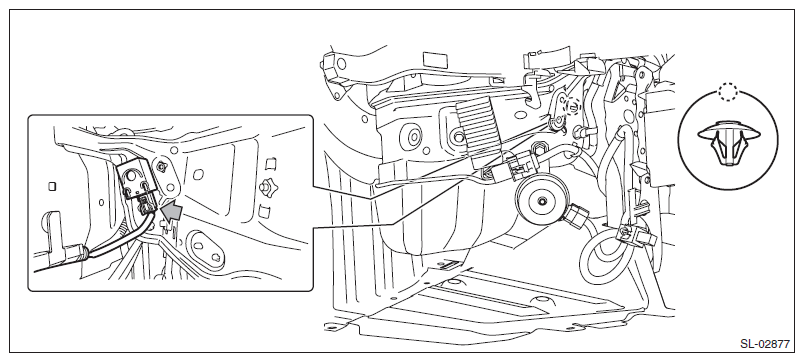

Fig 2: Detaching Keyless Buzzer Clip
G11582914Courtesy of SUBARU OF AMERICA, INC.
