Push Button Ignition Switch: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
3. Remove the knee airbag module. <Ref. to REMOVAL , Knee Airbag Module.>
4. Remove the push button ignition switch.
   1. Disconnect the connector, and remove the aspirator hose.

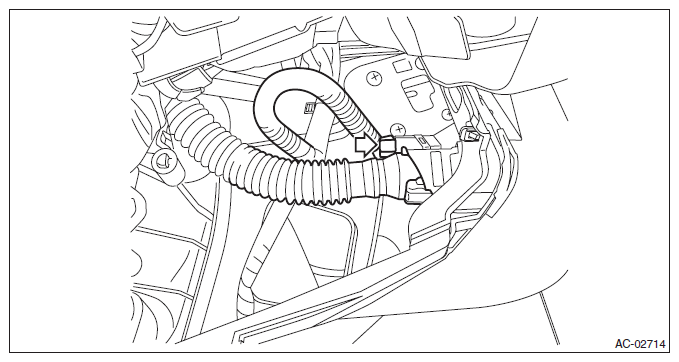

      Fig 1: Locating Aspirator Hose

      Courtesy of SUBARU OF AMERICA, INC.
   2. Release the claws, and then remove the panel - switch.
   3. Release the claws, and then remove the push button ignition switch from the panel - switch.

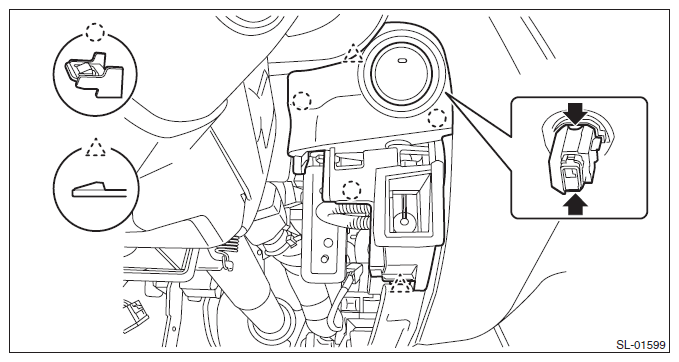

Fig 2: Pushing Switch Button Ignition From Panel

Courtesy of SUBARU OF AMERICA, INC.
