Front Seat

• Manual seat LH

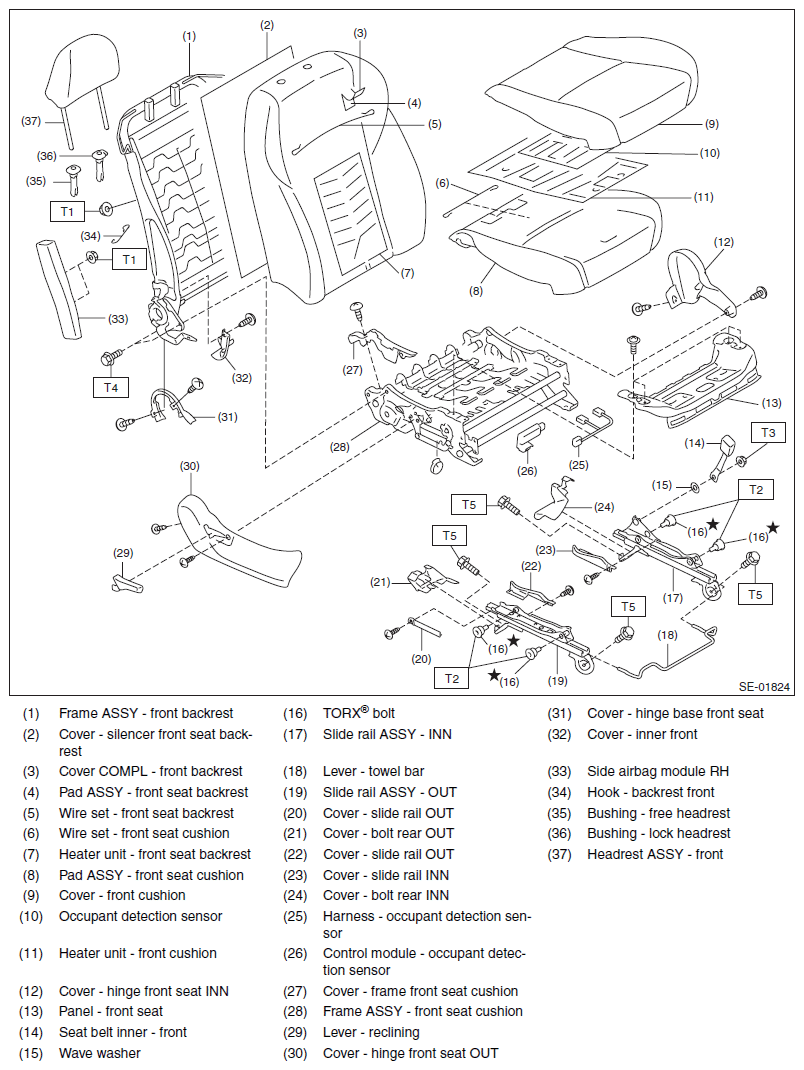

  Fig 1: Exploded View Of Front Seat With Torque Specification (Manual Seat LH)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6 (0.6, 4.4)

  T2: 15 (1.5, 11.1)

  T3: 38 (3.9, 28)

  T4: 52 (5.3, 38.4)

  T5: 53 (5.4, 39.1)

• Manual seat RH

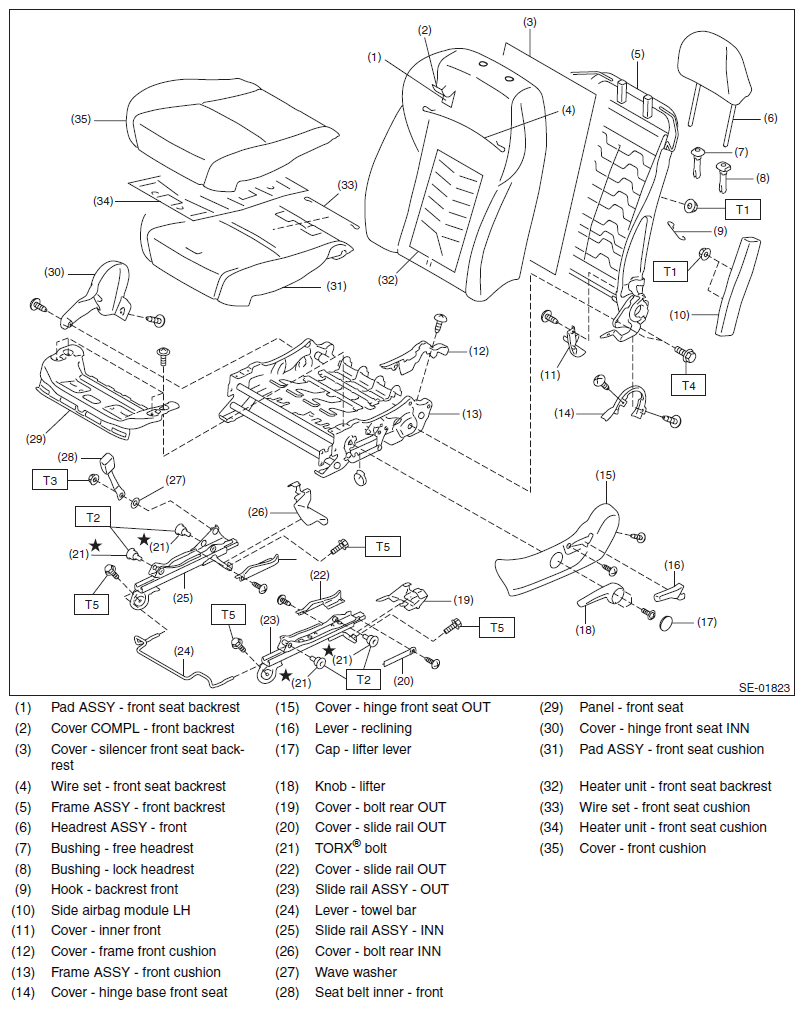

  Fig 2: Exploded View Of Front Seat With Torque Specification (Manual Seat RH)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6 (0.6, 4.4)

  T2: 15 (1.5, 11.1)

  T3: 38 (3.9, 28)

  T4: 52 (5.3, 38.4)

  T5: 53 (5.4, 39.1)

• Power seat

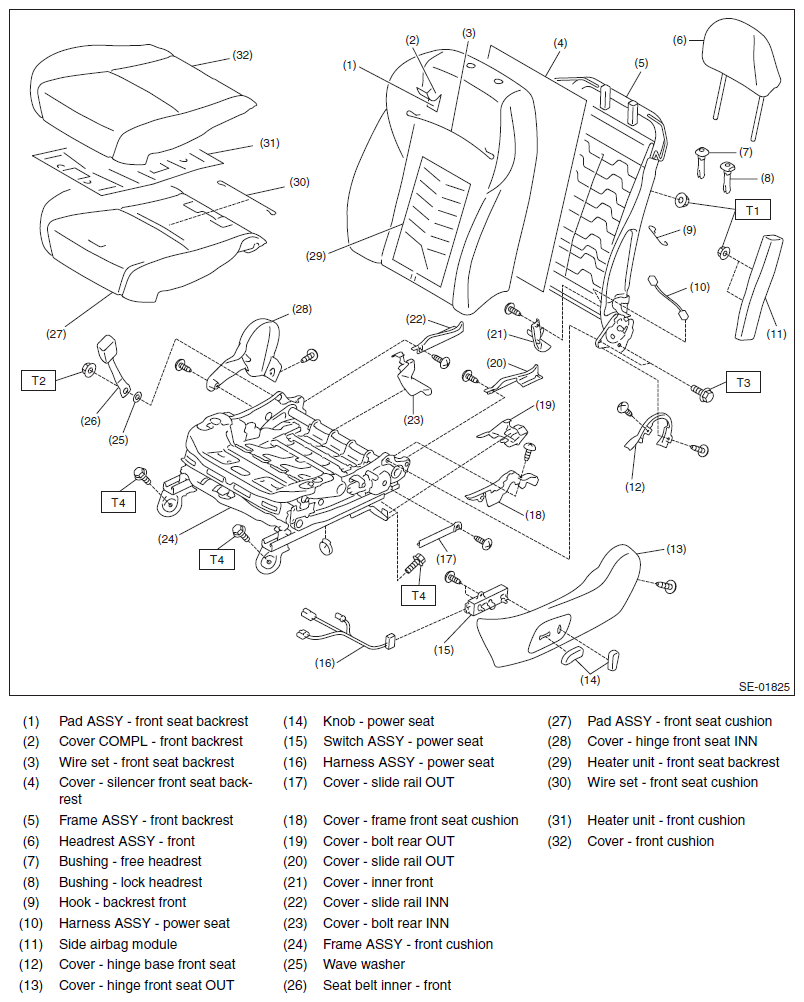

Fig 3: Exploded View Of Power Seat With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)
