General Description
›
Components With Torque Specifications
›
Fixed Glass
Fixed Glass

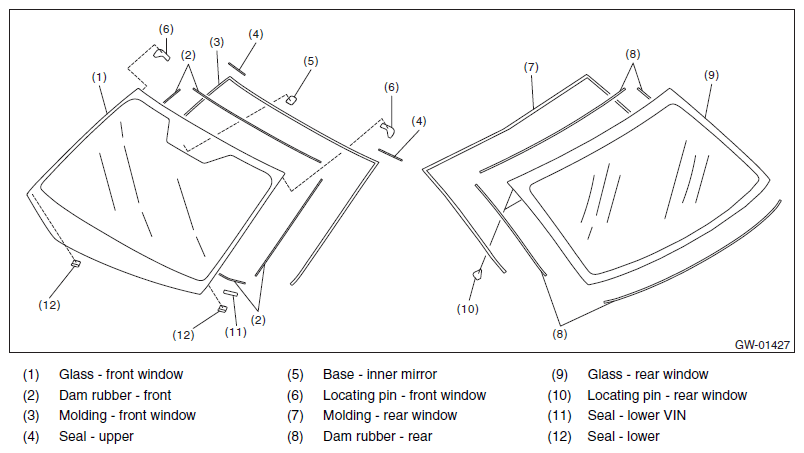

Fig 1: Fixed Glass Component Location
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Base - inner mirror cannot be removed from the glass - front window.
Courtesy of SUBARU OF AMERICA, INC.
