Fuel Injector 1

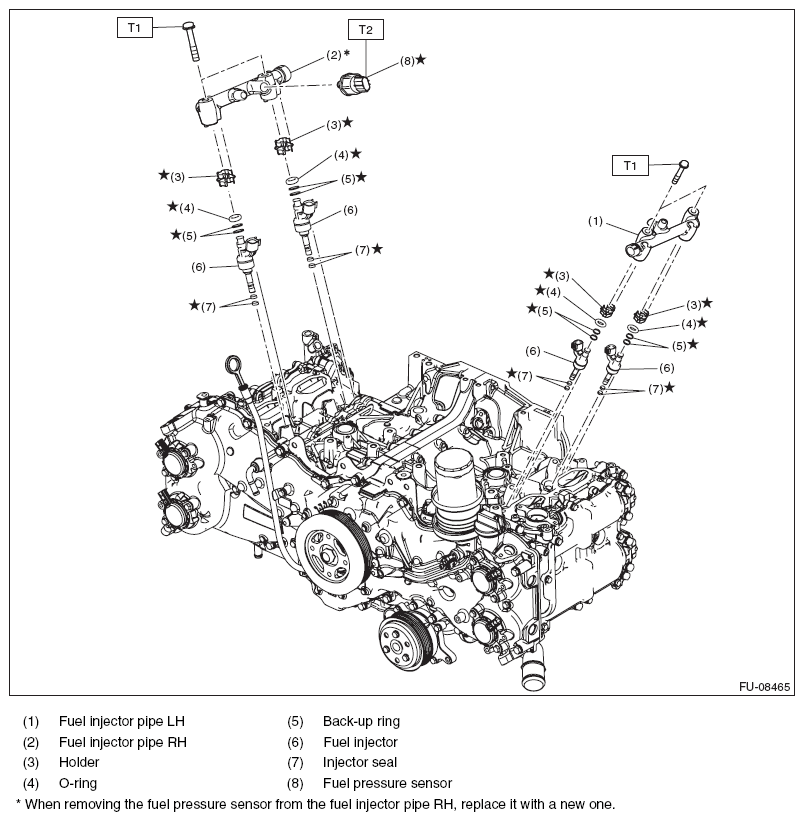

Fig 1: Exploded View Of Fuel Injector 1 With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

T2: 46 (4.7, 33.9)
