Intake Manifold

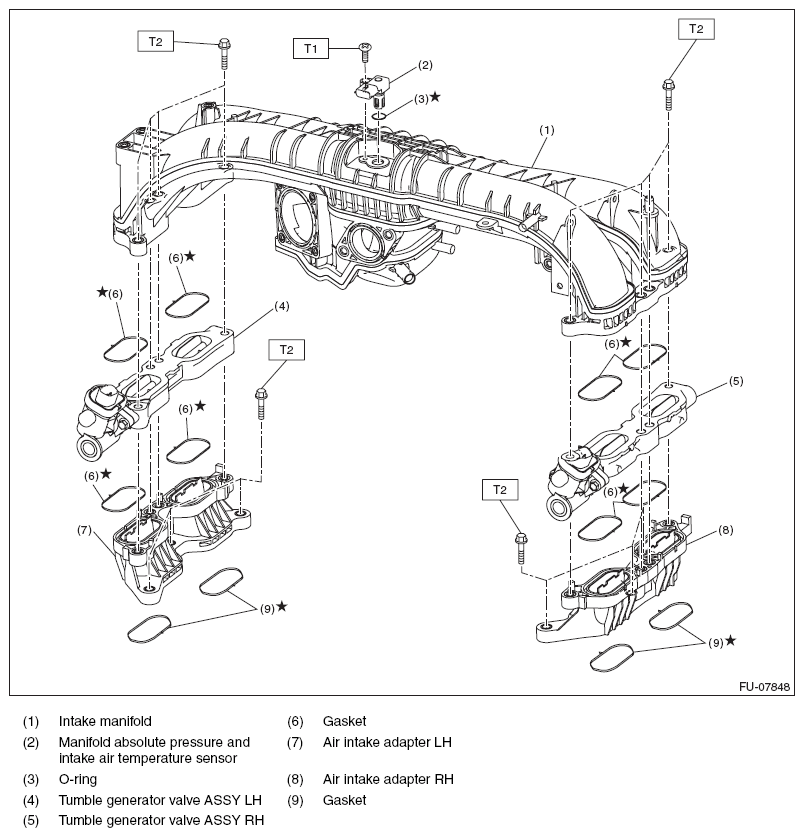

Fig 1: Exploded View Of Intake Manifold With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.5 (0.4, 2.6)

T2: 25 (2.5, 18.4)
