Tumble Generator Valve Assembly: Removal

NOTE: The tumble generator valve assembly is tightened together with the intake manifold.

1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
2. Remove the intake manifold. <Ref. to REMOVAL , Intake Manifold.>
3. Remove the air intake adapter from the cylinder head.
   • RH side

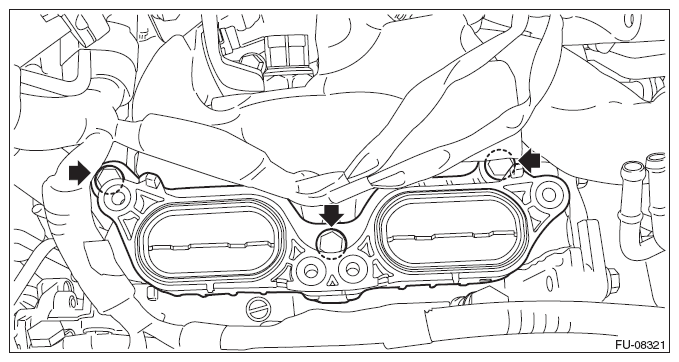

     Fig 1: Locating Air Intake Adapter Bolts - RH Side

     Courtesy of SUBARU OF AMERICA, INC.
   • LH side

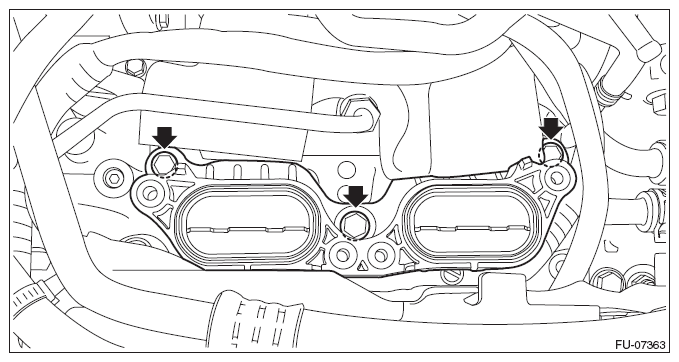

   Fig 2: Locating Air Intake Adapter Bolts - LH Side

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the cylinder head plate from cylinder head.

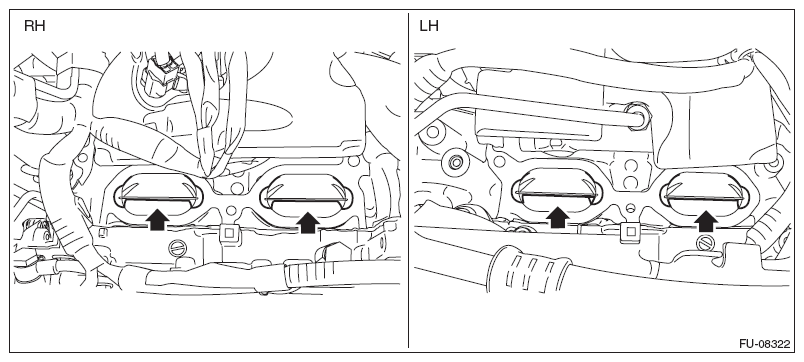

Fig 3: Locating Cylinder Head Plate

Courtesy of SUBARU OF AMERICA, INC.
