Engine Control System (Diagnostics - Introduction) (2.0L)
›
Electrical Component Location
›
Location
›
Control Module
Control Module

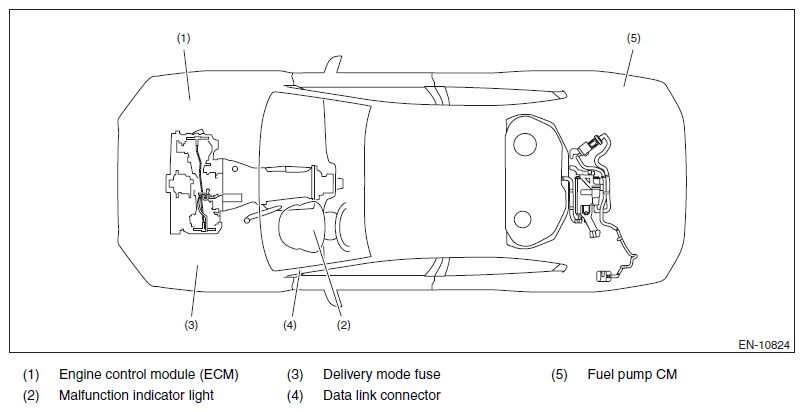

Fig 1: Control Module Component Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

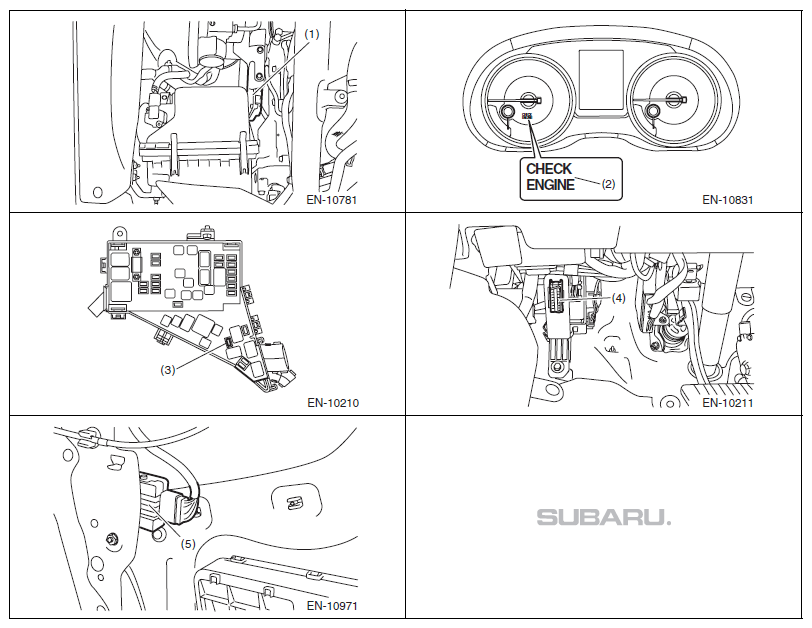

Fig 2: Control Module Component Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
