Radiator Sub Fan and Fan Motor: Assembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

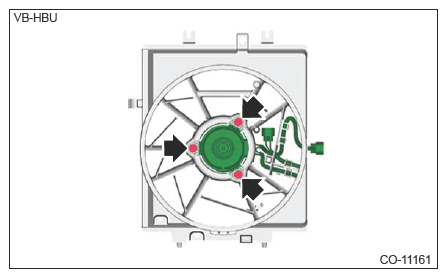

Install the fan motor (sub) to the radiator sub fan shroud.
Tightening torque:

4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

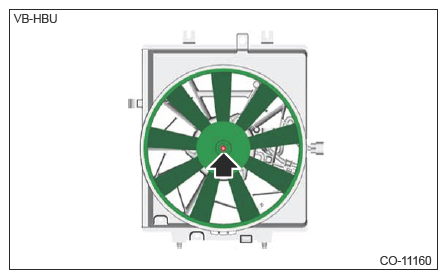

Install the radiator sub fan to the fan motor (sub).
CAUTION:
Always use new nuts (with locking agent).

Tightening torque:

3.4 N.m (0.3 kgf-m, 2.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the radiator fan control module (sub). Ref. to COOLING (H4DOTC)>RADIATOR FAN CONTROL UNIT>INSTALLATION>RADIATOR FAN CONTROL MODULE (SUB) .
