Rear Seat Belt

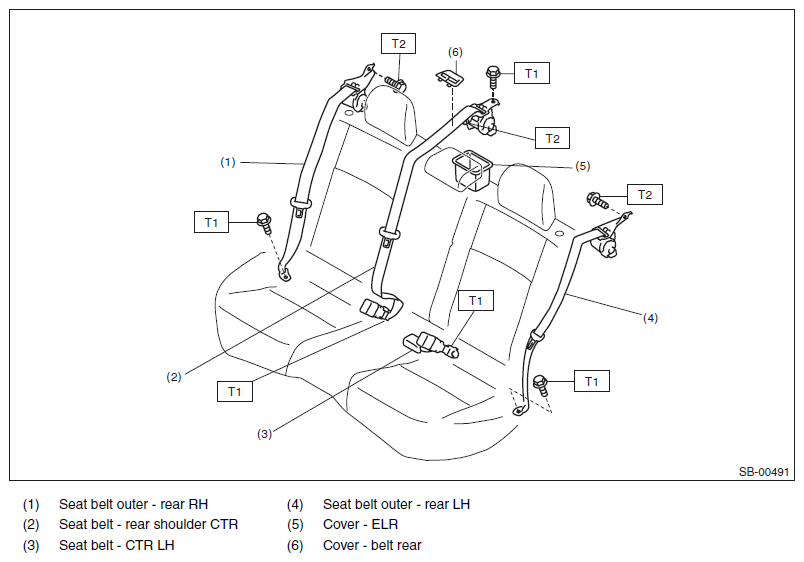

Fig 1: Rear Seat Belt Component With Torque Specification

G11582411

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 53 (5.4, 39.1)
