Clutch Disc and Cover: Installation

Insert the ST into the clutch disc and attach to the flywheel by inserting the ST end into pilot bearing.
NOTE: When installing the clutch disc, be careful to attach in the correct direction.

ST 499747100 CLUTCH DISC GUIDE

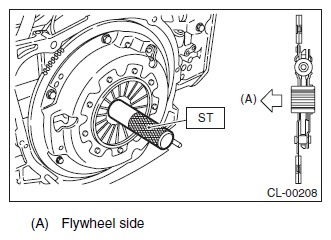

Fig 1: Inserting ST End Into Pilot Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch cover and tighten the bolts to specified torque.
NOTE:
- When installing a clutch cover, position the clutch cover so that the spacing between the unbalance marks (paint mark) on the flywheel and clutch cover is 120° or more apart. (The unbalance mark indicates the direction of residual unbalance.)
- Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)
- STI model

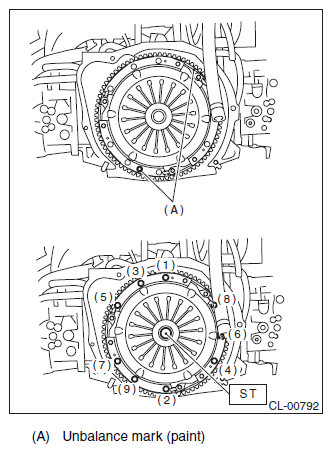

  Fig 2: Installing Clutch Cover (STI Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model

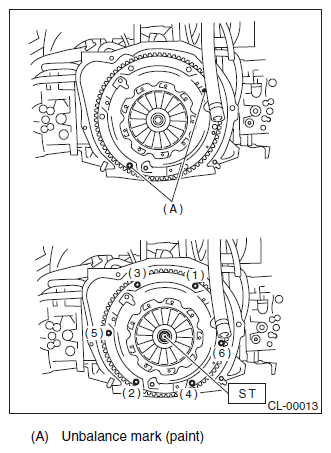

Fig 3: Installing Clutch Cover (Except For STI Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.
ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly. <Ref. to INSTALLATION (TY75) , Manual Transmission Assembly.> <Ref. to INSTALLATION (TY85) , Manual Transmission Assembly.>
