Subaru
›
2017
›
WRX Limited, Automatic CVT Trans
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Transmission Control Systems
›
AT Shift Lock Control System
›
Wiring Diagram
›
Model With Push Button Ignition Switch
Model With Push Button Ignition Switch

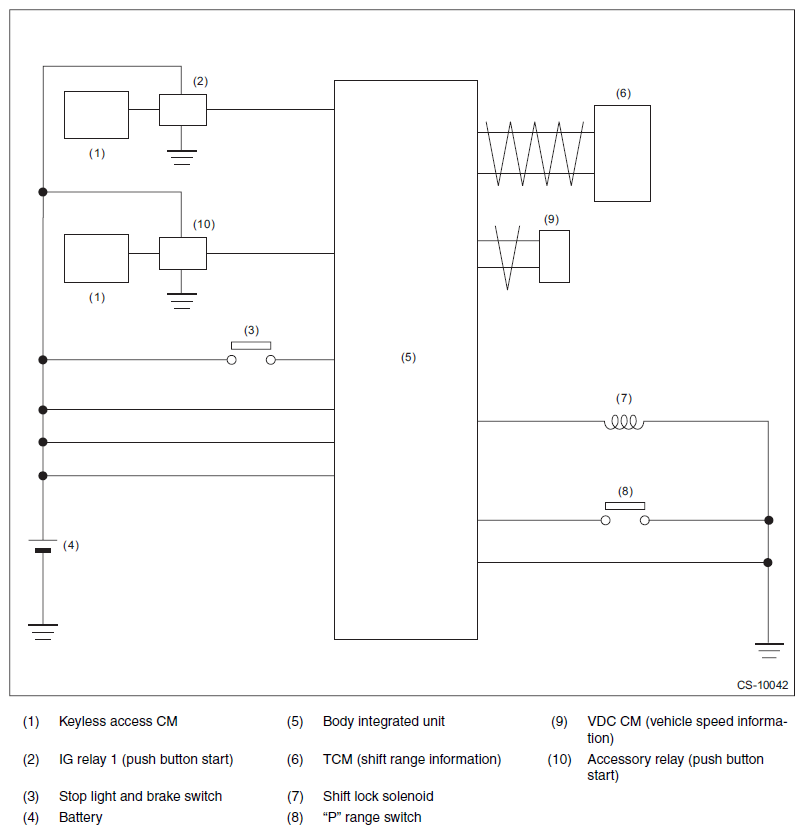

Fig 1: AT Shift Lock Control System - Wiring Diagram (Model With Push Button Ignition Switch)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
