Conditions For VDC Sequence Control

NOTE: The control operation starts at point A.

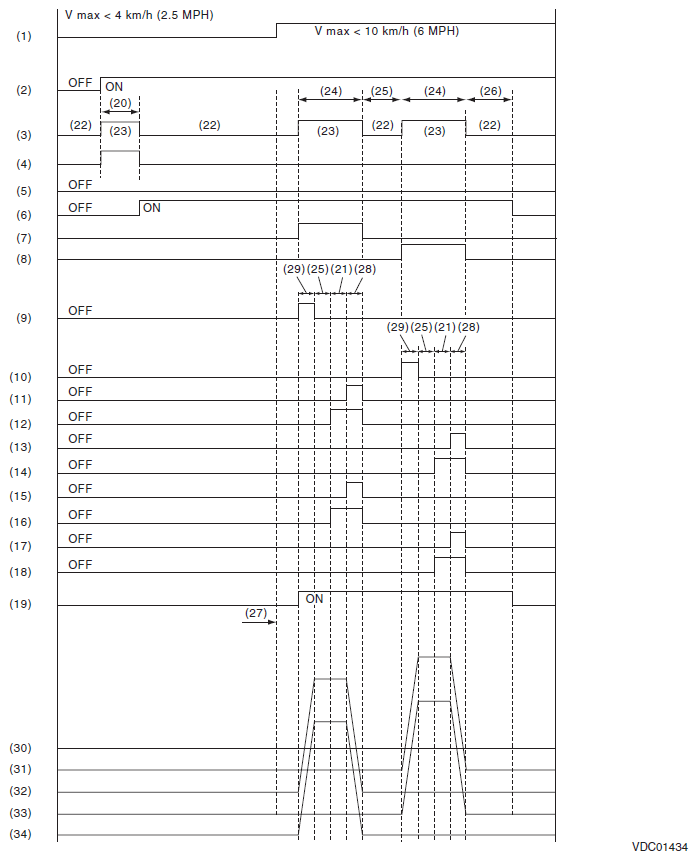

Fig 1: VDC Sequence Control On/Off Pattern (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

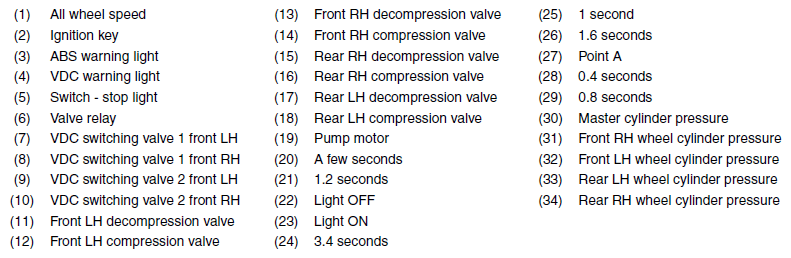

Fig 2: VDC Sequence Control On/Off Pattern (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
