Generator Bracket

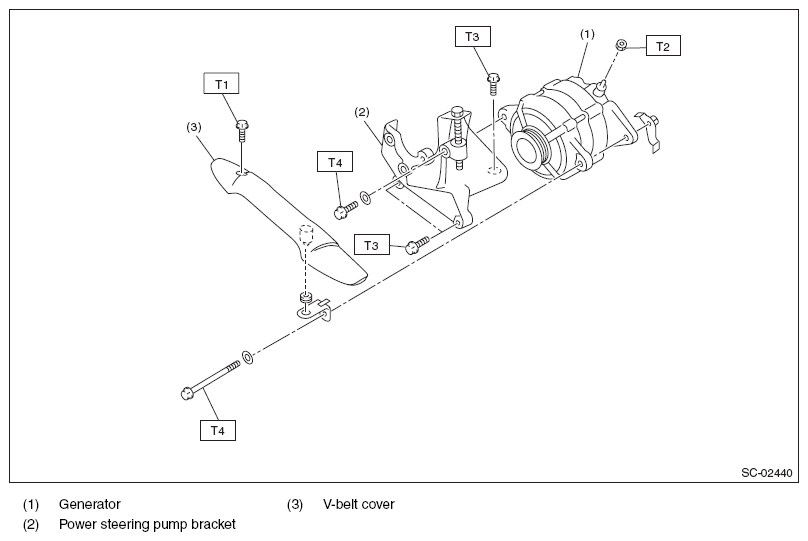

Fig 1: Generator Bracket Components Location

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 15 (1.5, 11.1)

T3: 22 (2.2, 16.2)

T4: 25 (2.5, 18.4)
