Starter
›
Engine Starting System
›
Starter ASSY (FA20)
›
Exploded View
Exploded View

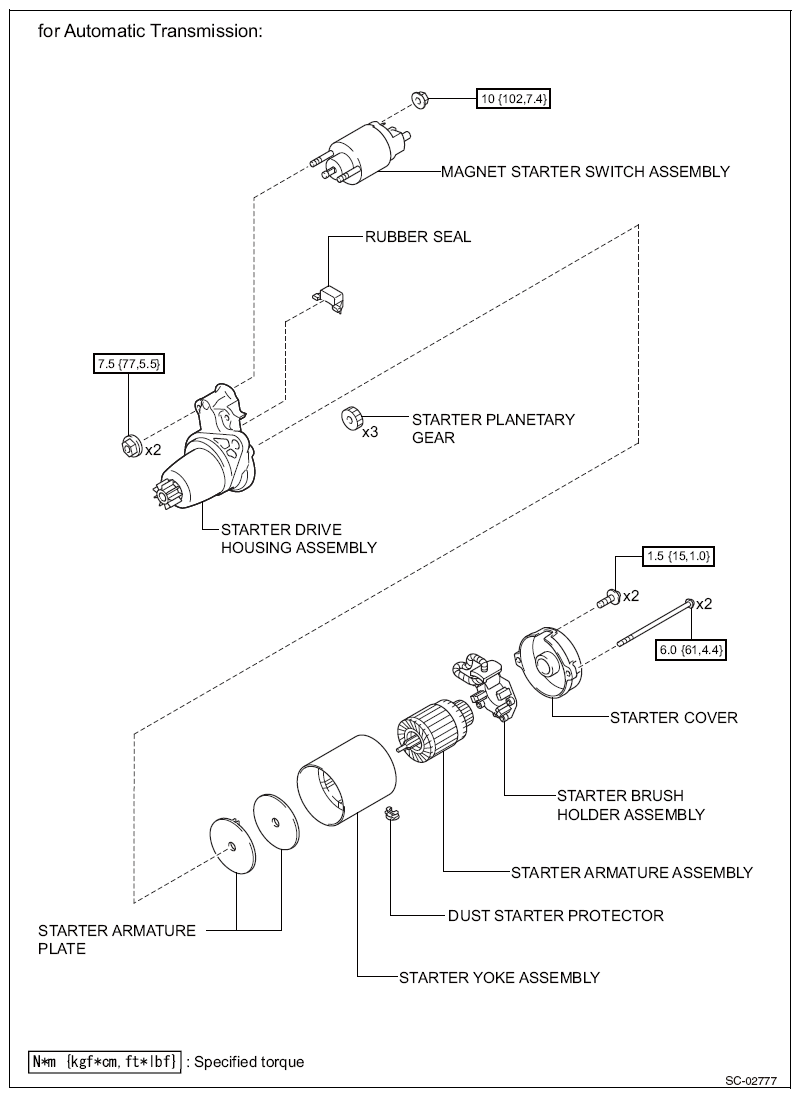

Fig 1: Starter Assembly (FA20) Components With Torque Specification (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

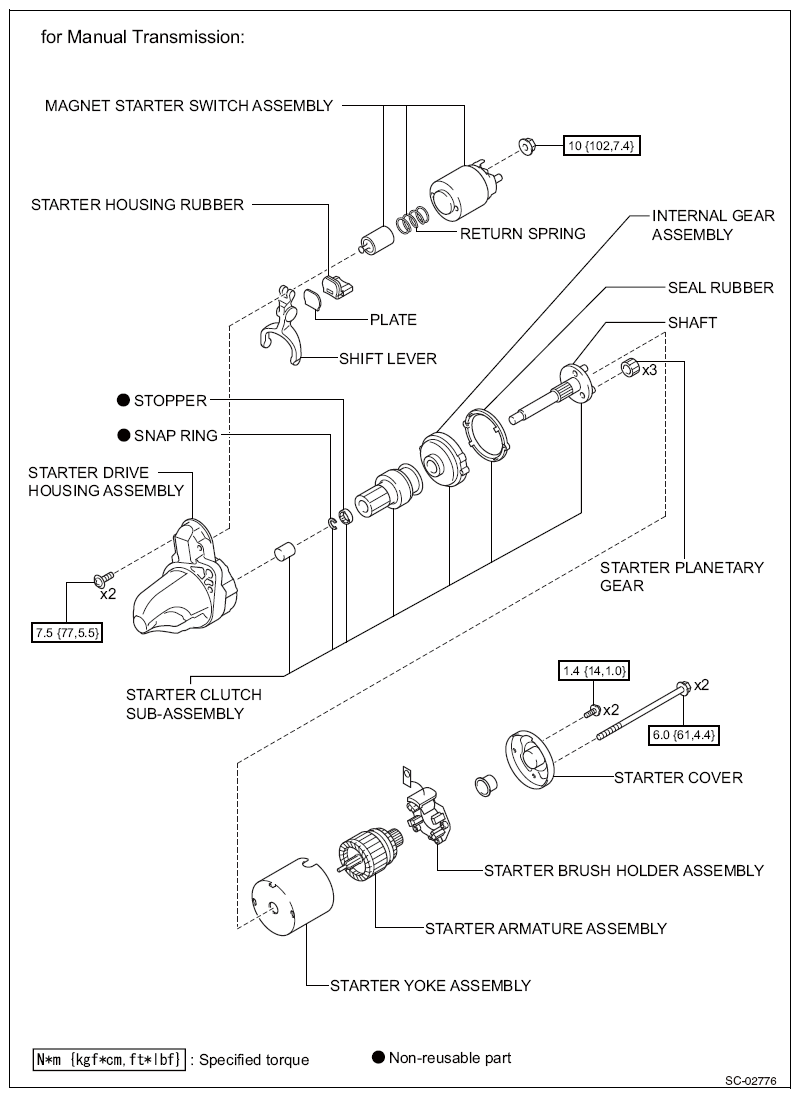

Fig 2: Starter Assembly (FA20) Components With Torque Specification (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Starter Assembly (FA20) Components With Torque Specification (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
