BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Engine Starting System
›
Starting System (FA20)
›

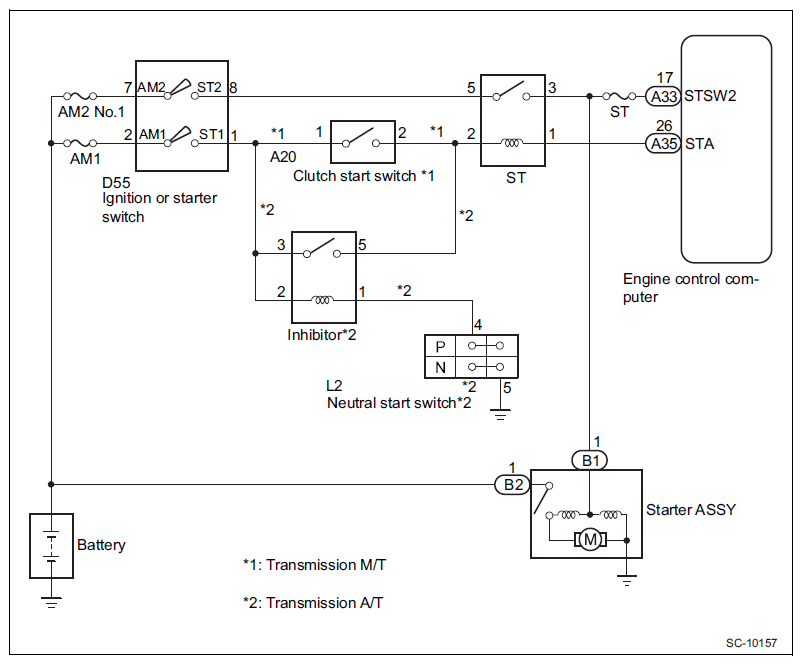

Circuit Figure
Circuit Figure
Without smart entry & start system
Courtesy of SUBARU OF AMERICA, INC.
With smart entry & start system
(Refer to
CIRCUIT FIGURE
)
