Exploded View

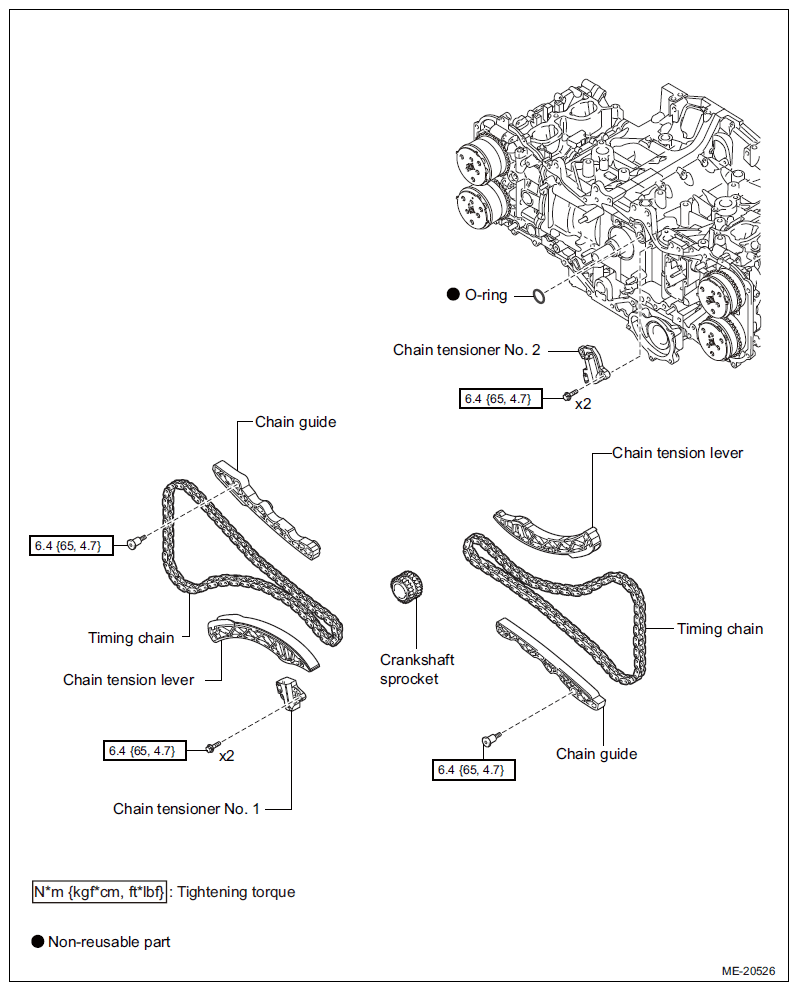

Fig 1: Timing Chain (FA20) Components With Torque Specification
G11258457Courtesy of SUBARU OF AMERICA, INC.
