FixVault
Home
›
Subaru
›
2018
›
BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt System
›
Rear Seat Inner Belt ASSY
›
Exploded View
Exploded View

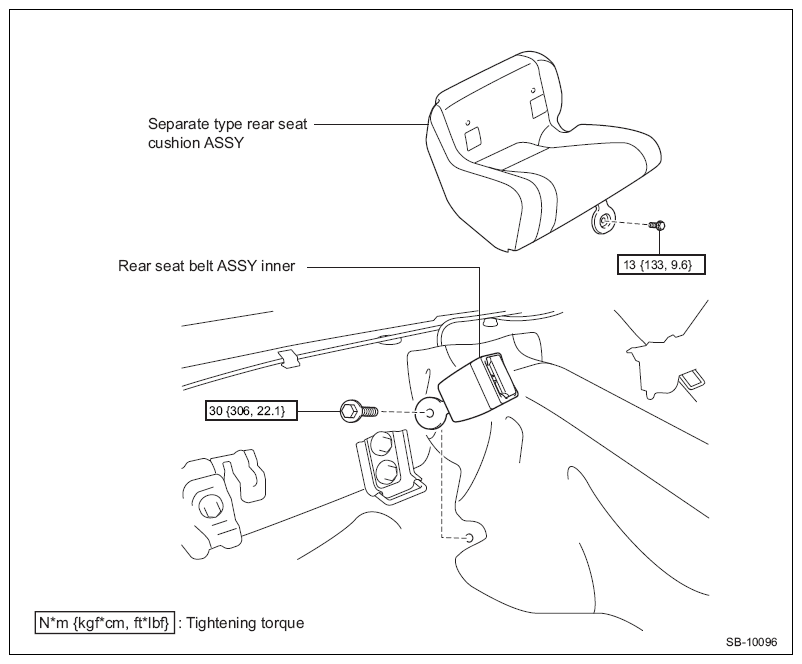

Fig 1: Rear Seat Inner Belt Assembly Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
