Exploded View

Courtesy of SUBARU OF AMERICA, INC.

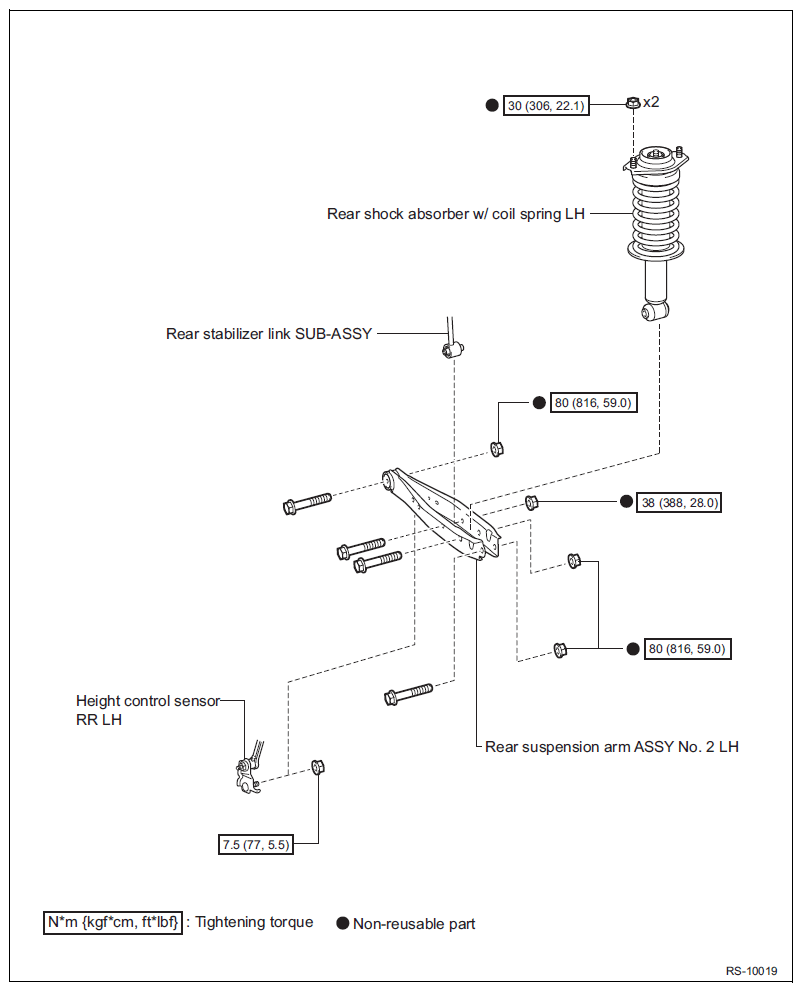

Fig 1: Rear shock absorber Components With Torque Specification (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

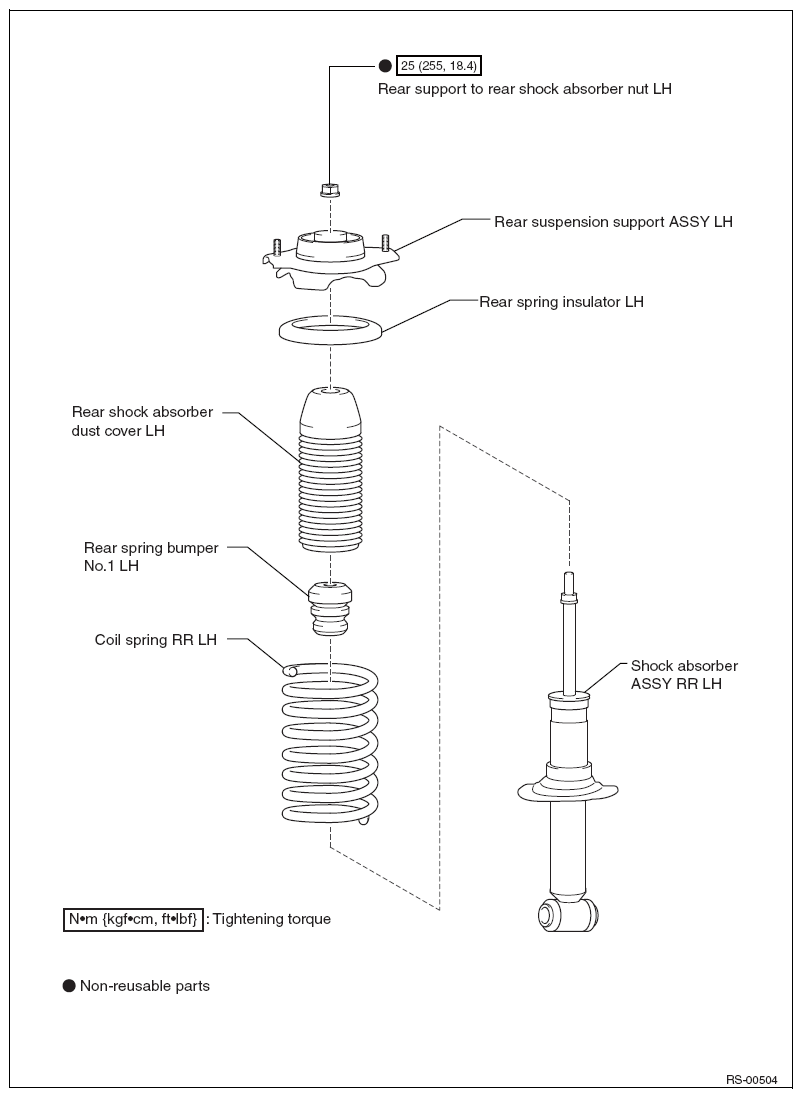

Fig 2: Rear shock absorber Components With Torque Specification (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
