Exploded View

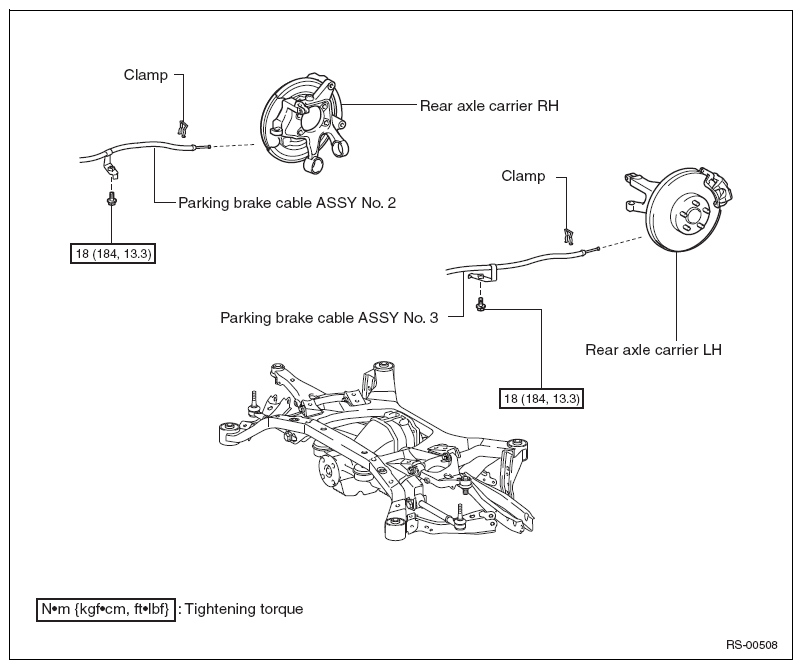

Fig 1: Rear Suspension Member Components With Torque Specification (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

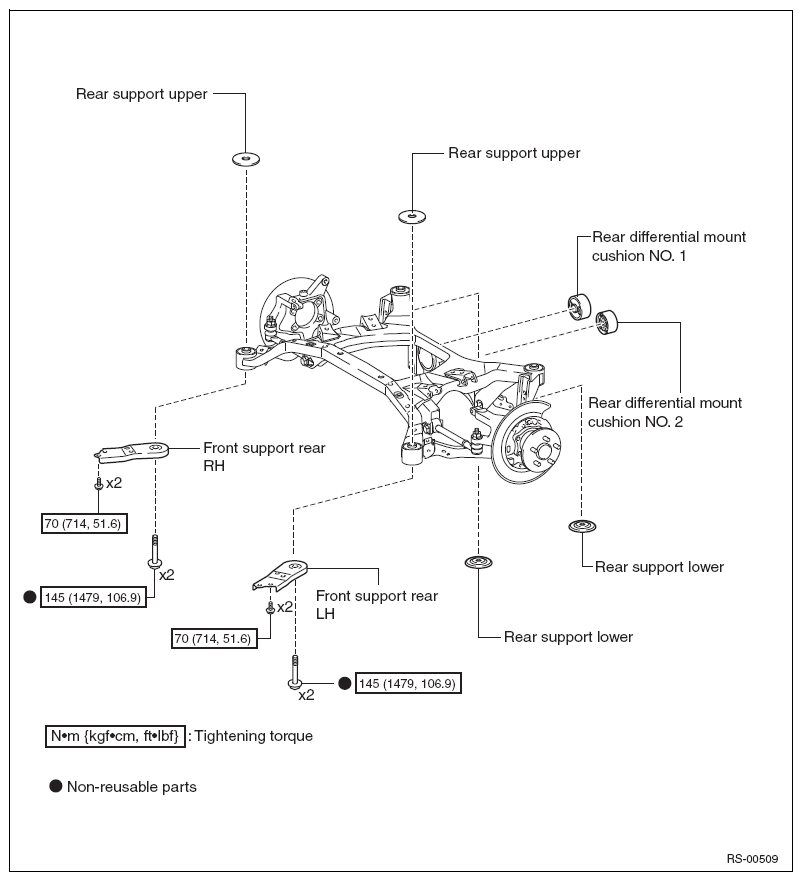

Fig 2: Rear Suspension Member Components With Torque Specification (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Rear Suspension Member Components With Torque Specification (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

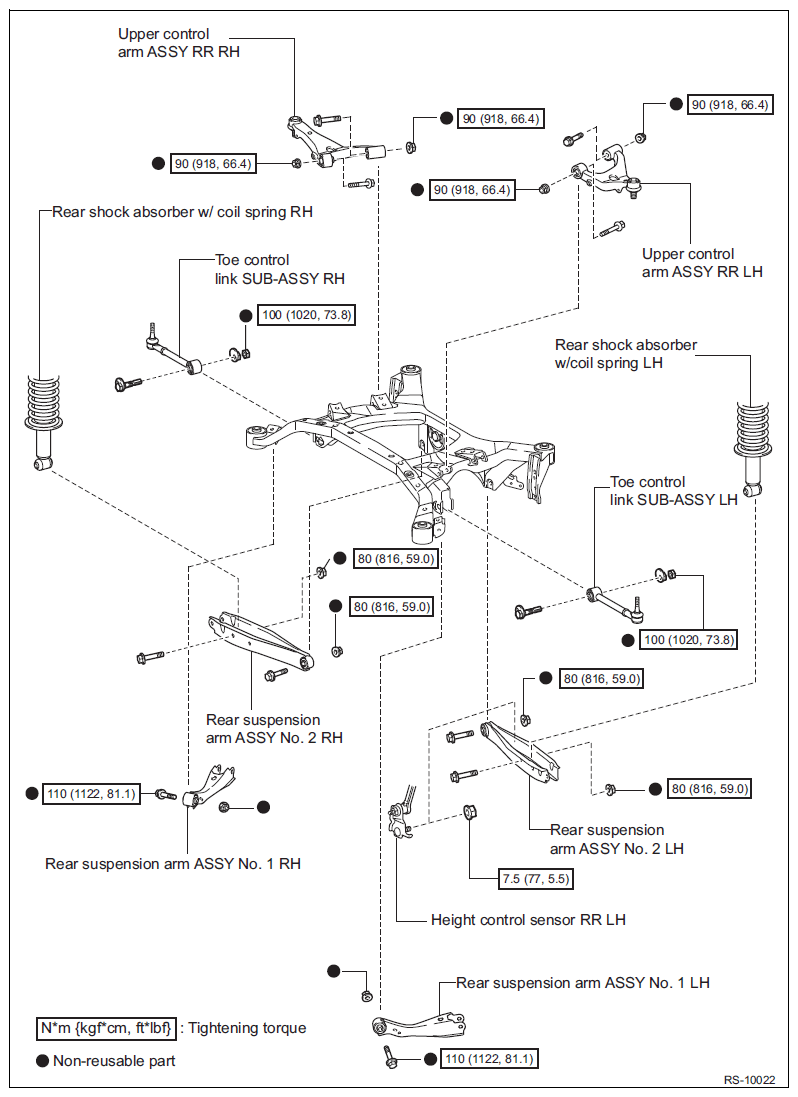

Fig 4: Rear Suspension Member Components With Torque Specification (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

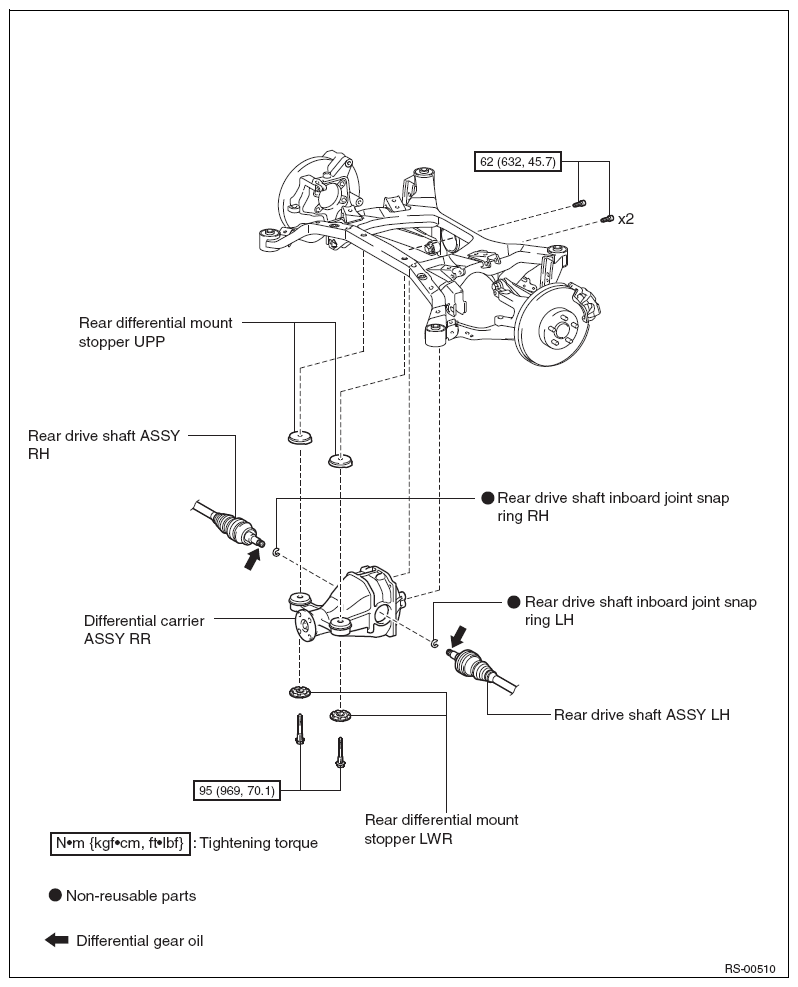

Fig 5: Rear Suspension Member Components With Torque Specification (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
