Exploded View
Exploded View

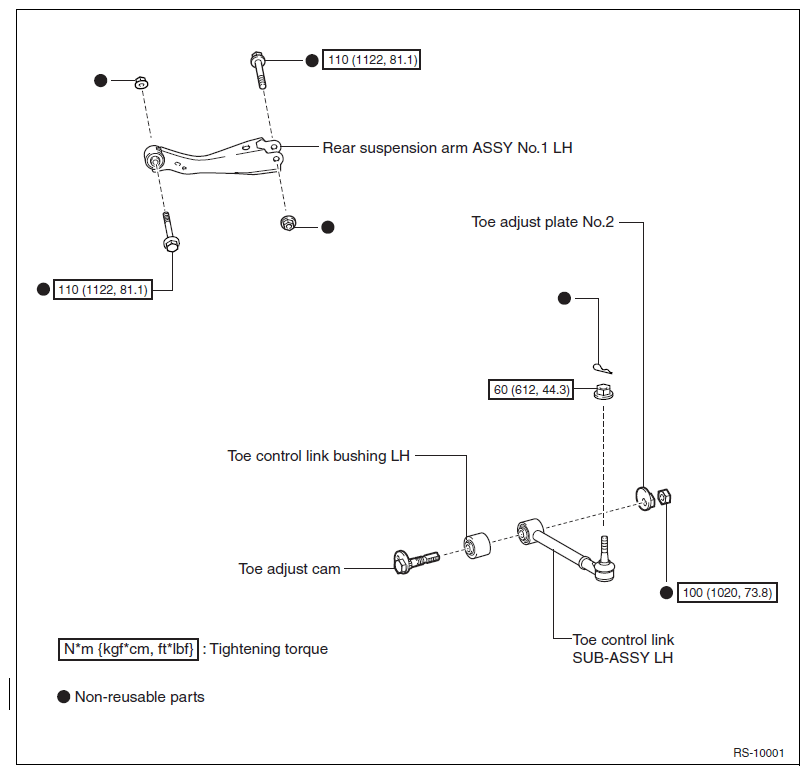

Fig 1: Toe Control Link Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
