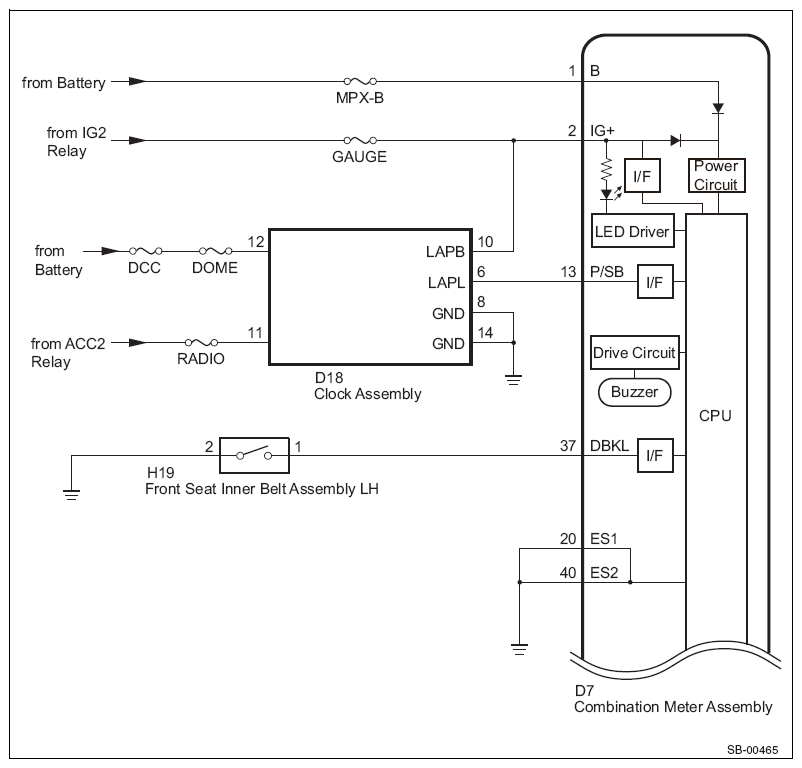

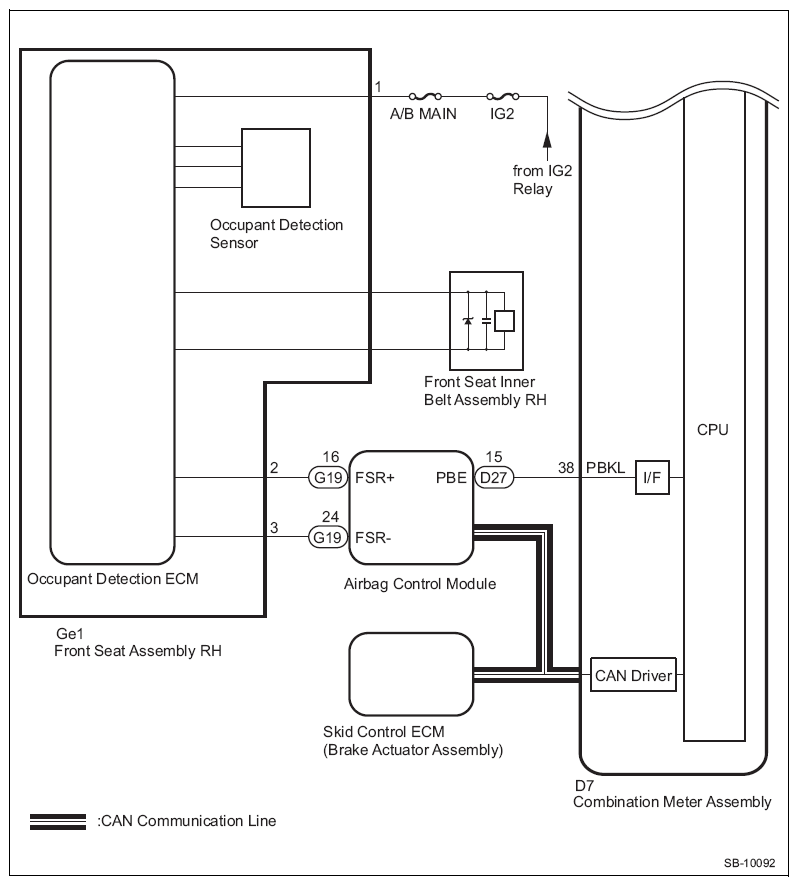

Circuit Figure
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
COMMUNICATION SPECIFICATION
| Sender |
Receiver |
Signal |
Communication Method |
| Airbag control module |
Combination meter assembly |
Occupant detection |
CAN |
| Skid control ECM |
Combination meter assembly |
Vehicle speed |
