Data Communication Module

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the grille assembly - CTR ventilation. Ref. to AIR CONDITIONER>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>Audio>REMOVAL
  4. Remove the data communication module.

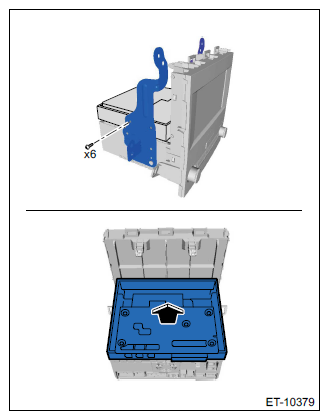

    1. Remove the screws.
    2. Remove the audio bracket or navigation bracket, and then remove the data communication module.
      CAUTION: Do not drop or apply any impact to the data communication module.
      G11246757Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Remove the screws on RH side in the same procedure as on the LH side.
