Relay and Fuse: Location

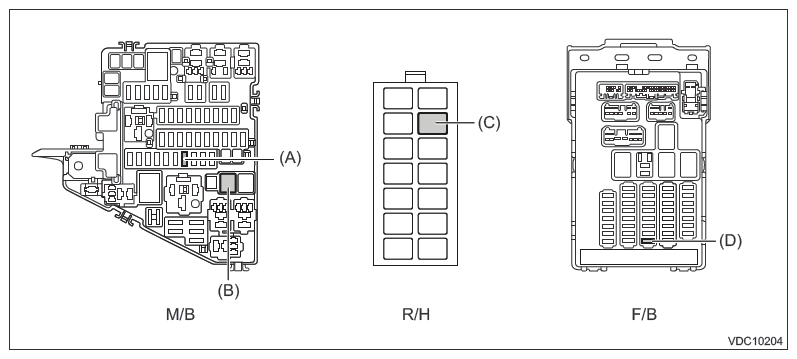

G11255141

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box (M/B)	Fuse 30 A (VDC Control Module & H/U)	(A)
Main fuse box (M/B)	Fuse 40A (VDC Control Module & H/U)	(B)
Relay holder (R/H)	Brake light relay	(C)
Fuse & relay box (F/B)	Fuse 7.5 A (VDC Control Module & H/U)	(D)

NOTE: For other related fuses, refer to the wiring diagram.

Crosstrek model: Ref. to WIRING SYSTEM (CROSSTREK MODEL)>POWER SUPPLY CIRCUIT .
