Starting System & Charging System: Generator: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-belt>REMOVAL>V-BELT .

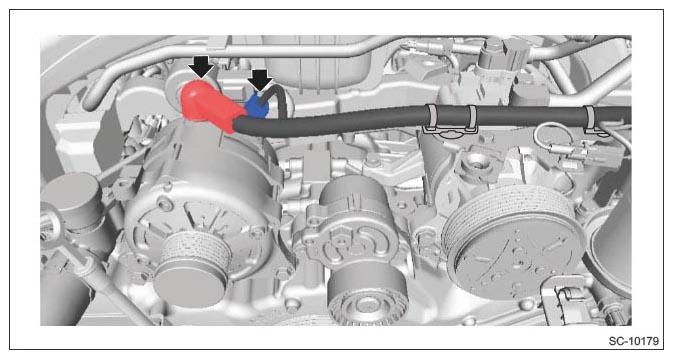

  3. Disconnect the connector and terminal B.
    G11253733Courtesy of SUBARU OF AMERICA, INC.

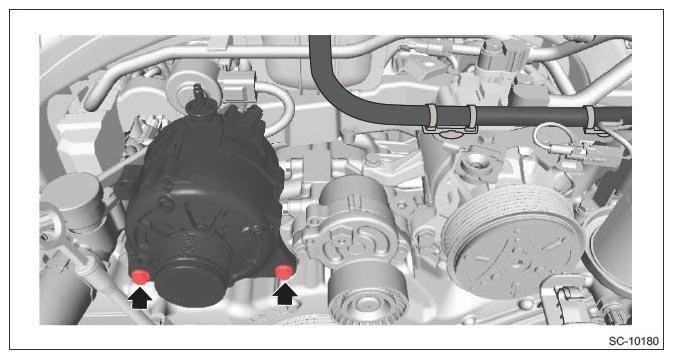

  4. Remove the generator.
    G11253734Courtesy of SUBARU OF AMERICA, INC.
