Air Intake Boot: Removal

  1. Remove the clips, and loosen the clamps.
    G11252776Courtesy of SUBARU OF AMERICA, INC.

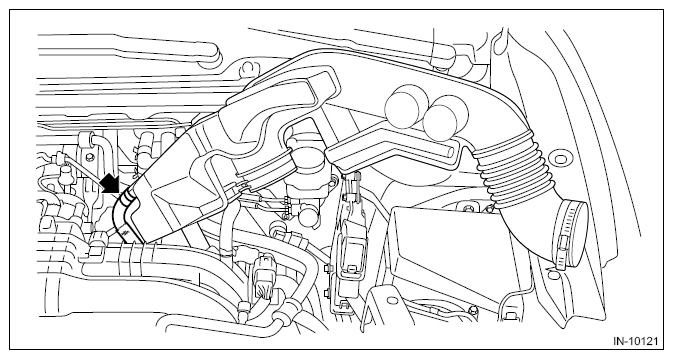

  2. Disconnect the PCV hose and remove the air intake boot.
    G11253087Courtesy of SUBARU OF AMERICA, INC.
