Chain Cover

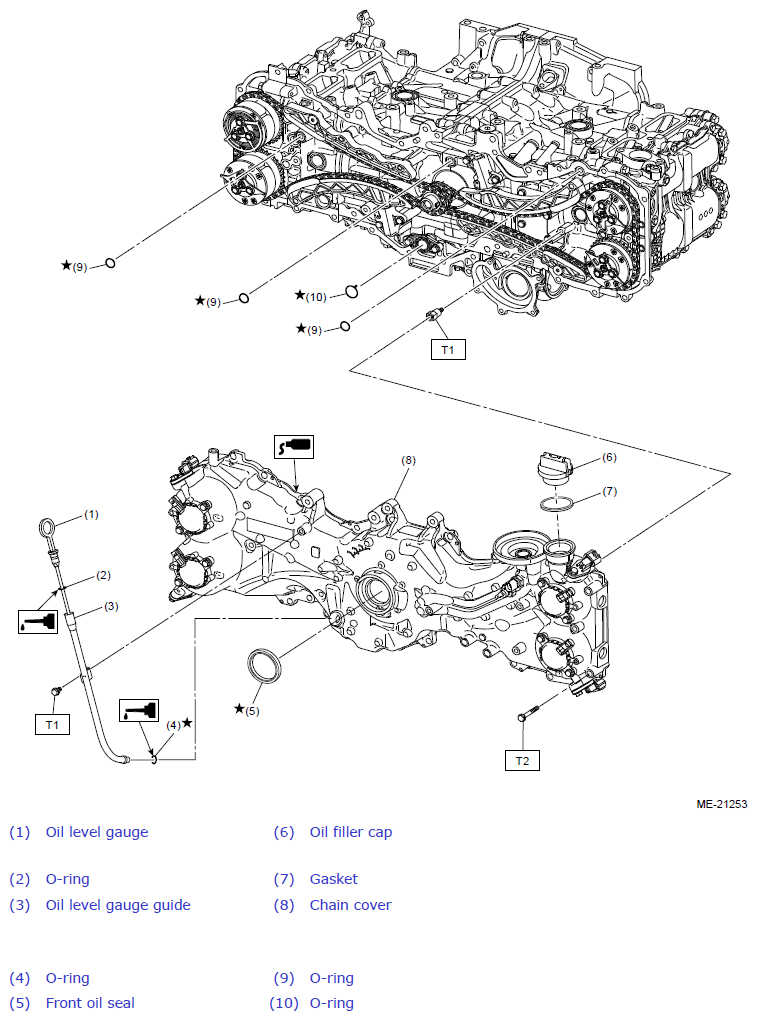

Fig 1: Locating Chain Cover Components

G12395336

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: Ref. to MECHANICAL (H4DO)>Chain Cover>INSTALLATION .
