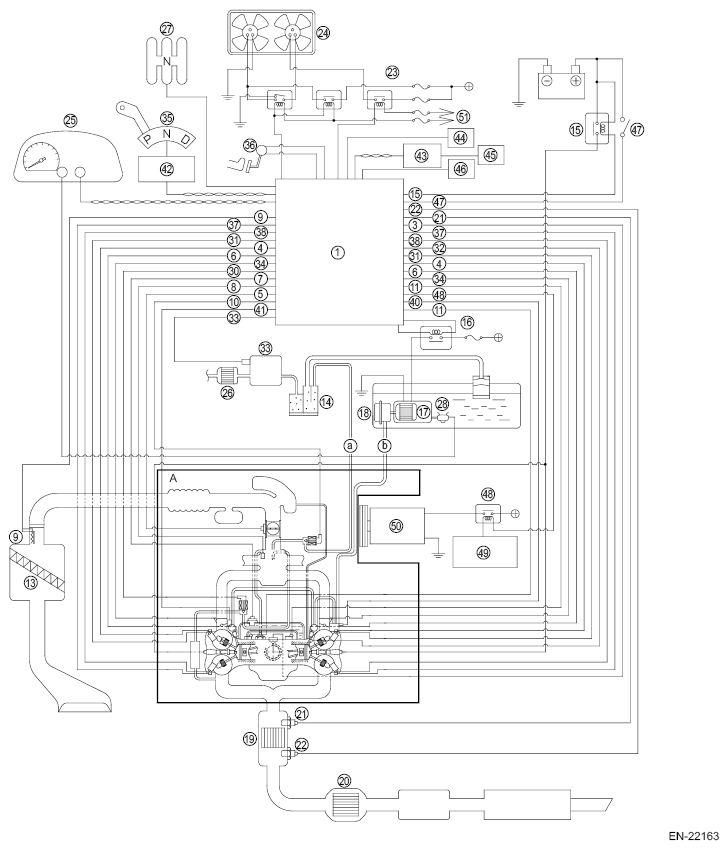

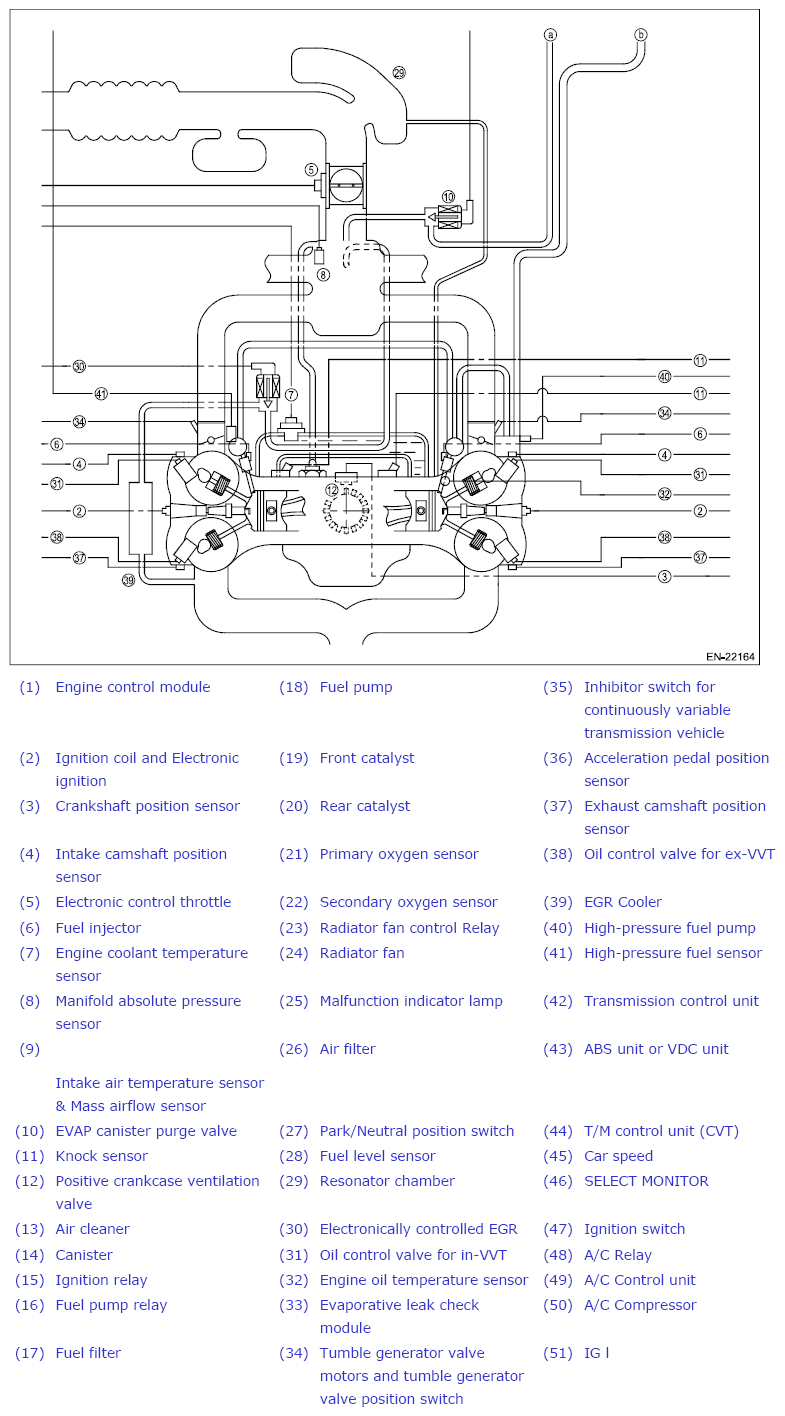

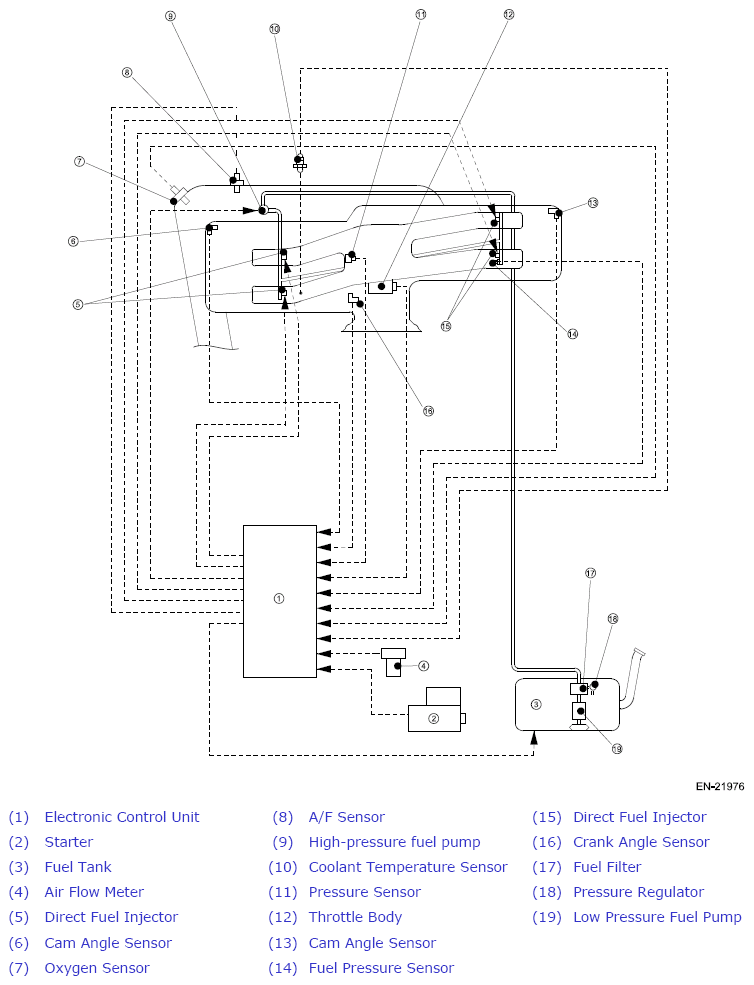

Home › Subaru › 2018 › Crosstrek Base, Standard Trans › Repair and Diagnosis › Engine Performance › System › Engine Control System (Diagnostics - Introduction) › General Description › System Block Diagram
