Rear Wheel Toe-In

When adjusting, adjust it to the following value.

Toe-in: Adjustment value

3±2 mm (0.12±0.08in)

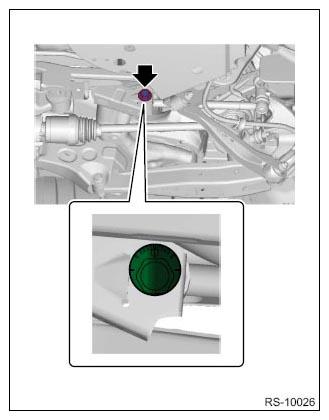

1. Loosen the self-locking nut after holding the bolt head section of lateral link assembly - front.

   Courtesy of SUBARU OF AMERICA, INC.

2. Turn the adjusting bolt until toe-in is within the specification.
   NOTE: When the left and right wheels are adjusted for toe-in at the same time, the movement of one scale graduation changes toe-in by approx. 6 mm (0.24in).

   To increase toe-in.
   Rotate the left side clockwise.	Rotate the right side counterclockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

   To decrease toe-in.
   Rotate the left side counterclockwise.	Rotate the right side clockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

3. Attach and tighten a new self-locking nut.

   Tightening torque:

   100 N.m (10.2kgf-m, 73.8ft-lb)

   NOTE: While holding the adjusting bolt side, tighten the nut side.
