Grip Assembly

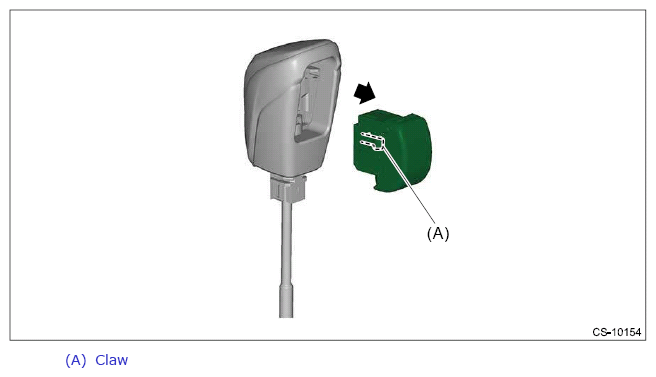

  1. Remove the button assembly _ AT.
    G12392809Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rod COMPL.
