M/T Clutch System: Flywheel: Removal

  1. Remove the manual transmission assembly.
    • 6MT model:

      Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .

  2. Remove the clutch cover and clutch disc. Ref. to CLUTCH SYSTEM>Clutch Disc and Cover>REMOVAL .

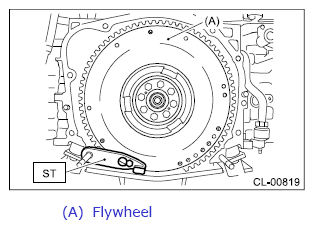

  3. Install the ST.

    Special tool:

    ST: 498497100 CRANKSHAFT STOPPER

    G12395069Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the flywheel and crankshaft position sensor plate.
  5. Drive out the pilot bearing from the flywheel.
