Fuel Pipe Insulator No. 2

  1. Remove the fuel pipe insulator No. 1. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL>FUEL PIPE INSULATOR NO. 1 .

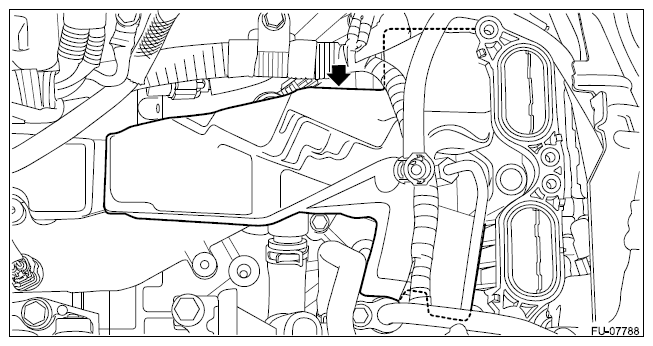

  2. Remove the fuel pipe insulator No. 2.
    G12508904Courtesy of SUBARU OF AMERICA, INC.
