Manifold Absolute Pressure and Intake Air Temperature Sensor: Removal

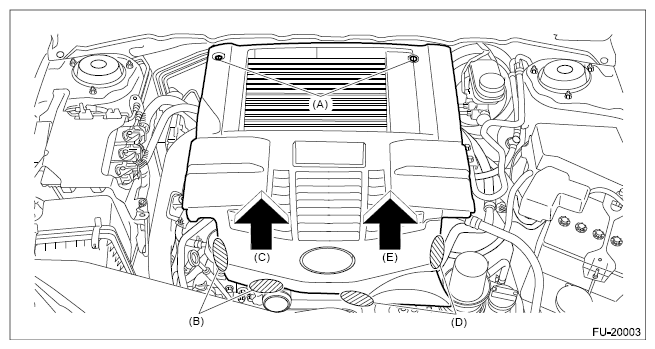

Remove the collector cover.
1. Remove the clip (A).
2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.

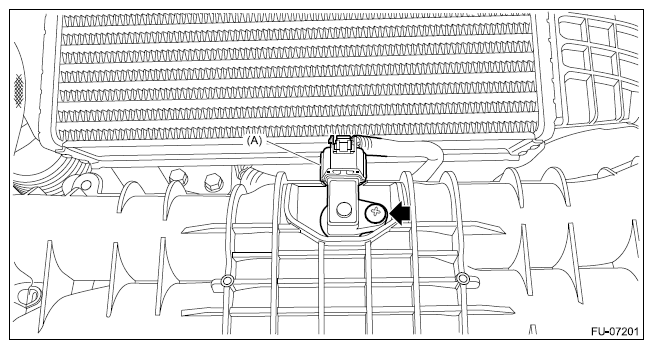

Disconnect the connector (A) from the manifold absolute pressure & intake air temperature sensor, and remove the manifold absolute pressure & intake air temperature sensor from the intake manifold.

Courtesy of SUBARU OF AMERICA, INC.
