RH Side

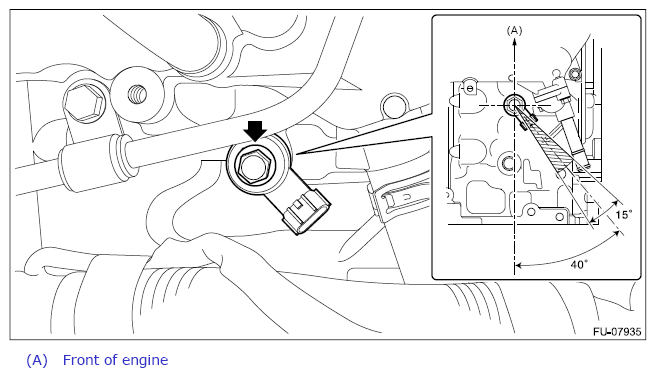

  1. Install the knock sensor to the cylinder block.
    NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 32.5 - 47.5° angle relative to the rear of engine.

    Tightening torque:

    24 N.m (2.4 kgf-m, 17.7 ft-lb)

    G12509004Courtesy of SUBARU OF AMERICA, INC.

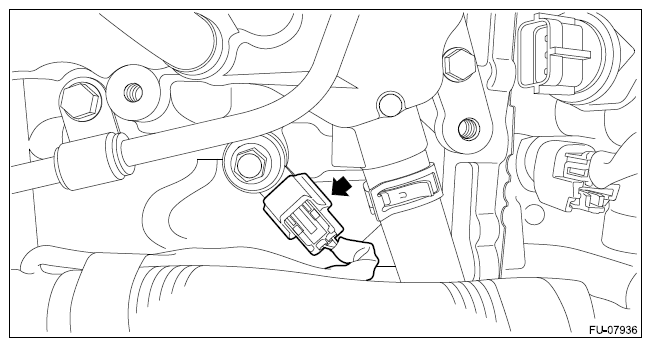

  2. Connect the connector to the knock sensor.
    G12509005Courtesy of SUBARU OF AMERICA, INC.
  3. Install the fuel pipe insulator No. 3. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>INSTALLATION>FUEL PIPE INSULATOR NO. 3 .
  4. Install the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>INSTALLATION .
  5. Connect the battery ground terminal.
  6. Install the collector cover.
