Intake Side
- Disconnect the ground cable from battery.
- Remove the air intake duct (rear). (RH side only) Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .

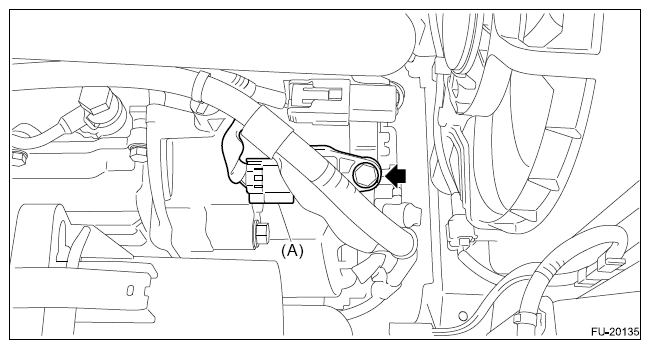

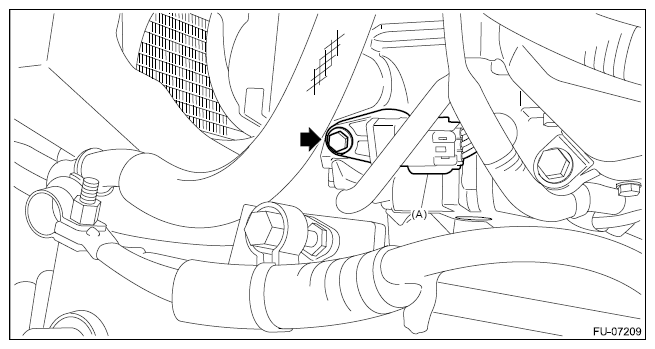

- Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.
