Fuel Pump Control Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the right side rear quarter trim. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

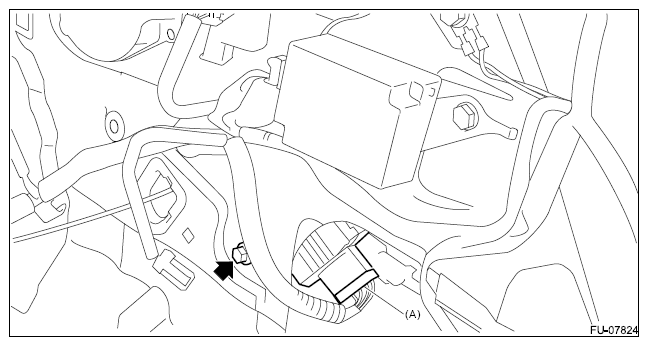

  3. Disconnect the connector (A), and remove the fuel pump control unit.
    G12509053Courtesy of SUBARU OF AMERICA, INC.
