High-Pressure Fuel Pump Case

  1. Remove the high-pressure fuel pump. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Pump>REMOVAL>HIGH-PRESSURE FUEL PUMP .

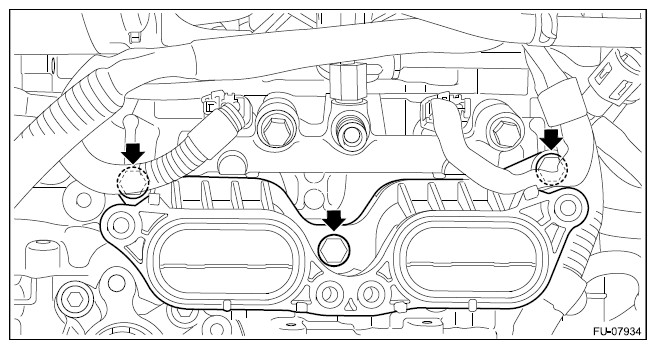

  2. Remove the air intake adapter LH from the cylinder head.
    G12508952Courtesy of SUBARU OF AMERICA, INC.

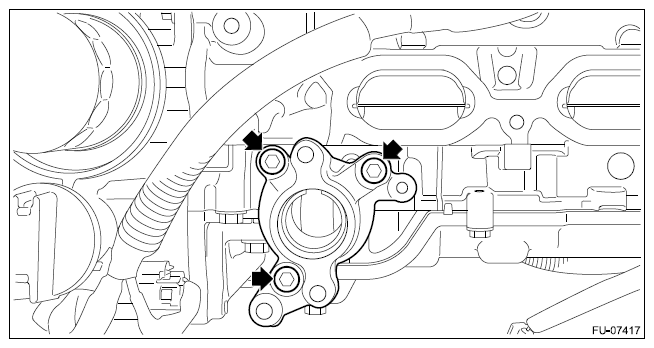

  3. Remove the high-pressure fuel pump case from the cam carrier assembly LH.
    G12508953Courtesy of SUBARU OF AMERICA, INC.
