Intake Side
- Disconnect the ground cable from battery.
- Remove the air intake duct (rear). (RH side only) Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .

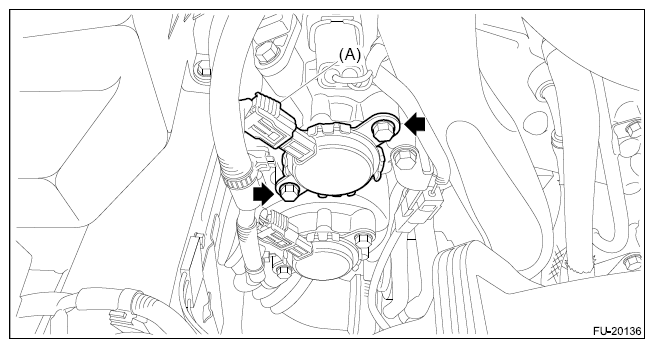

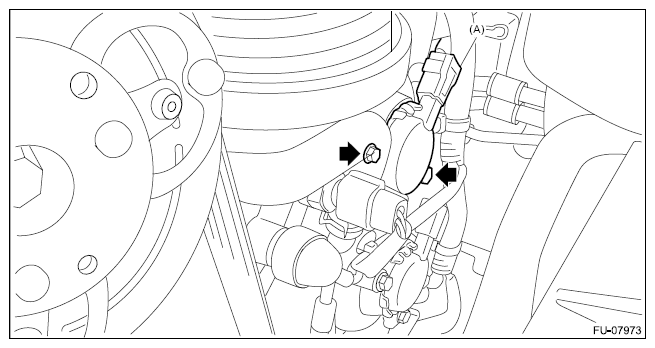

- Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.
