Forester 2.5i, Automatic CVT Trans
›
Repair and Diagnosis (Single Page)
›
Accessories & Equipment
›
Entertainment Systems
›
Telematics System (Diagnostics)
›
Control Module I/O Signal
›
System Block Diagram
System Block Diagram

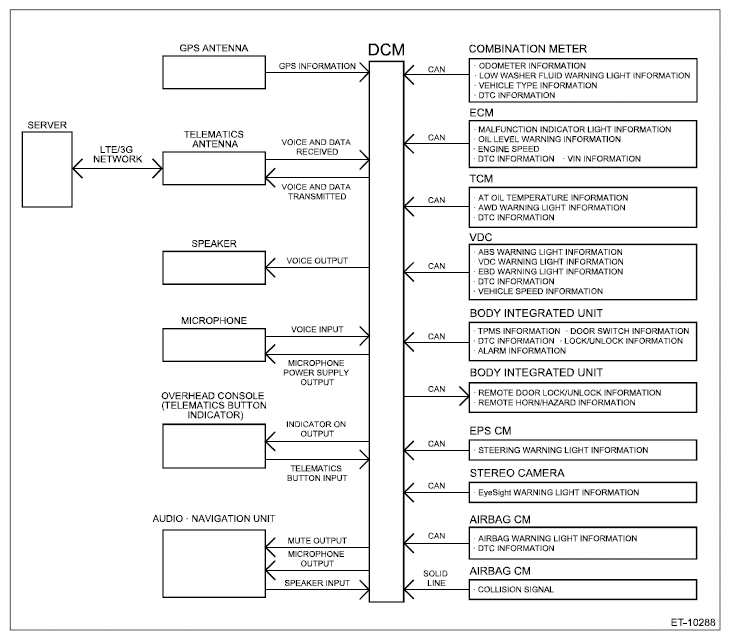

Main signals used between DCM and relevant control module.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
