Main Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
  3. Remove the panel - power window main switch.
    CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.

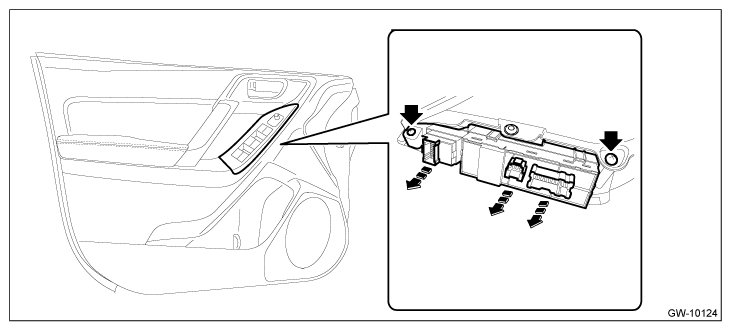

    1. Remove the screws and disconnect the connector.
      G12515595Courtesy of SUBARU OF AMERICA, INC.

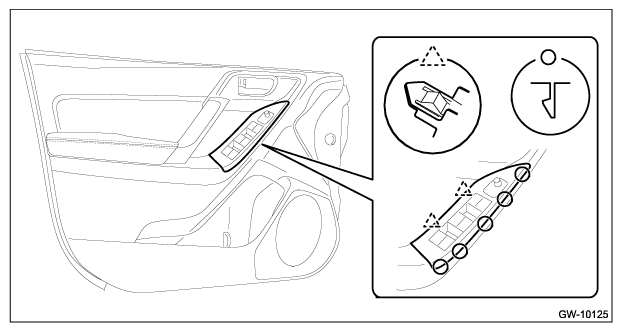

    2. Release the claws, and then remove the panel - power window main switch.
      G12515596Courtesy of SUBARU OF AMERICA, INC.

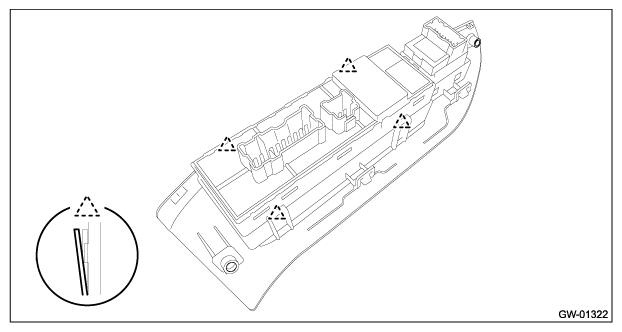

    3. Release the claws, and then remove the switch - power window main.
      G12515597Courtesy of SUBARU OF AMERICA, INC.
