Switch - Power Window Sub Rear

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the panel - power window sub switch rear.
    CAUTION: Be careful not to damage the trim panel - rear door with the panel - power window sub switch rear.
    1. Insert a sheet of protective paper (a) between panel - power window sub switch rear and trim panel - rear door.

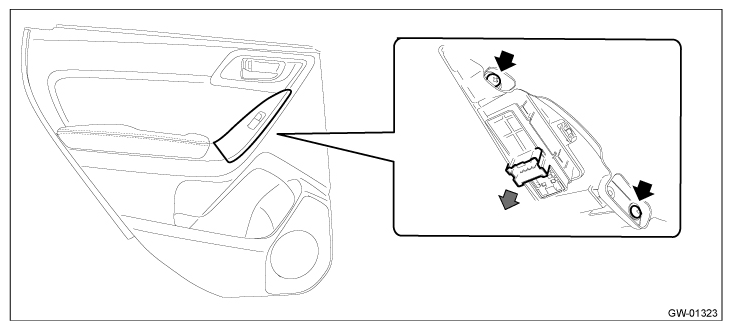

    2. Remove the screws and disconnect the connector.
      G12515598Courtesy of SUBARU OF AMERICA, INC.

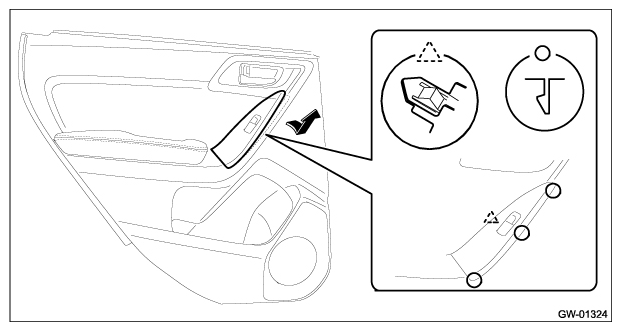

    3. Release the claws, and then remove the panel - power window sub switch rear.
      G12515599Courtesy of SUBARU OF AMERICA, INC.

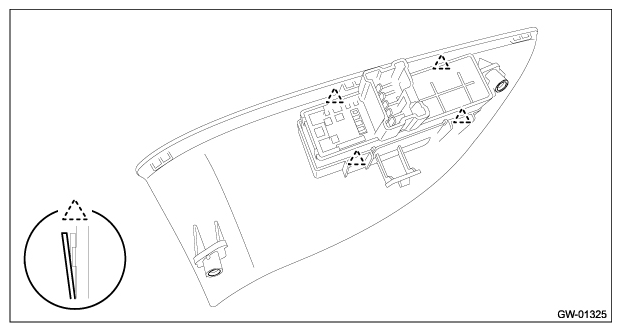

    4. Release the claws, and then remove the switch - power window sub rear.
      G12515600Courtesy of SUBARU OF AMERICA, INC.
