Universal Joint: Removal

  1. Adjust the tilt position of the column assembly - steering to the lowest position and lock the tilt lever.
  2. Remove the universal joint assembly - steering.
    1. Place alignment marks on the universal joint assembly - steering.
      NOTE: Place alignment marks on the following positions.
      • Between the column assembly - steering and the universal joint assembly - steering
      • Between the steering gearbox assembly and the universal joint assembly - steering

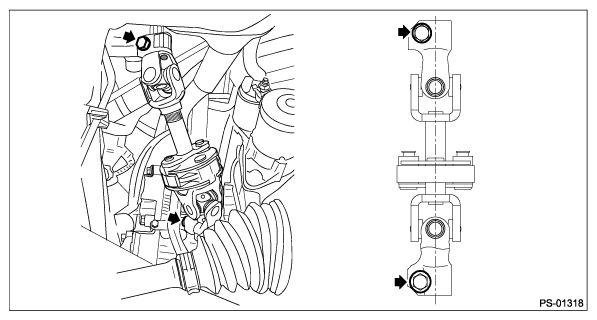

    2. Remove the bolt, and remove the universal joint assembly - steering.
      G12508121Courtesy of SUBARU OF AMERICA, INC.

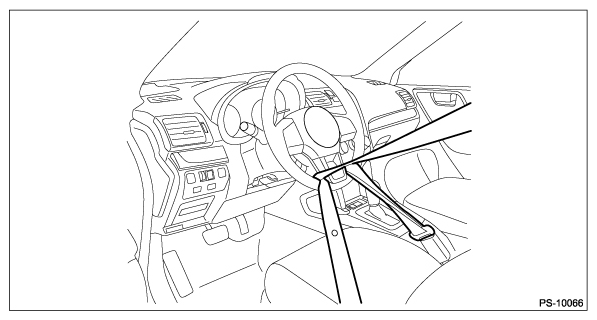

  3. Prevent the steering wheel from turning using the seat belt.
    G12508122Courtesy of SUBARU OF AMERICA, INC.
