Transmission Control Device: Removal

  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>REMOVAL .
  3. Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pan and Strainer>REMOVAL .

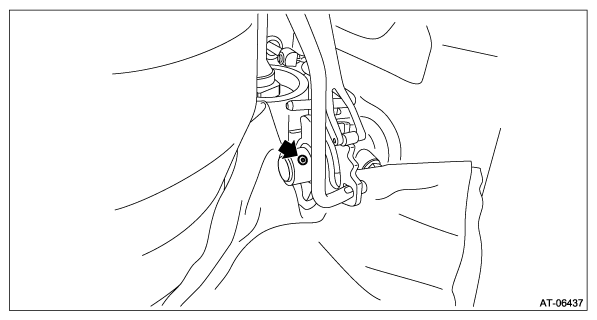

  4. Shift the manual plate to "N" range, and remove the spring pin.
    NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.
    G12476298Courtesy of SUBARU OF AMERICA, INC.

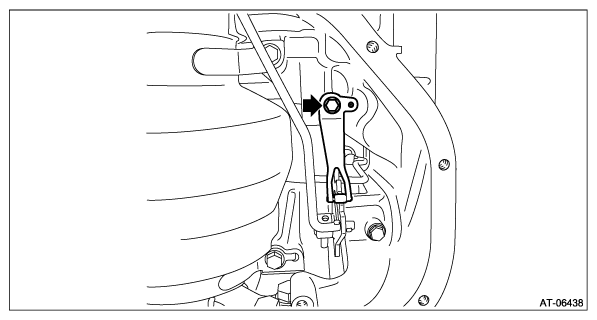

  5. Remove the detent spring.
    G12476299Courtesy of SUBARU OF AMERICA, INC.

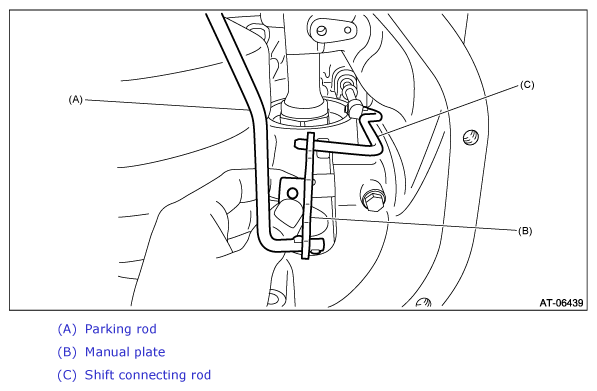

  6. Remove the manual plate from the shifter arm shaft, and remove the shift connecting rod of the manual valve.
    G12476300Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the manual plate and parking rod.

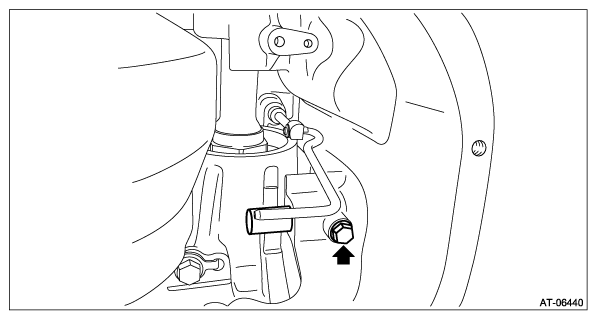

  8. Remove the bolt, and remove the shifter arm shaft.
    NOTE: Do not damage the lip of oil seal press-fitted in the case.
    G12476301Courtesy of SUBARU OF AMERICA, INC.

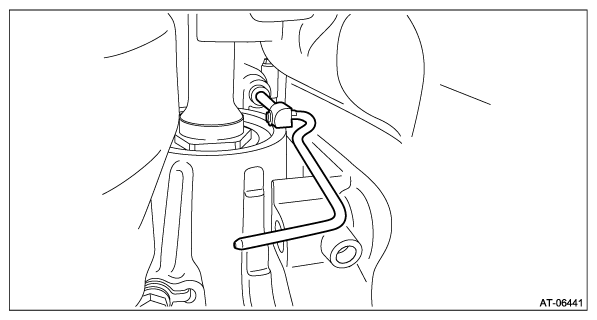

  9. Remove the manual valve.
    G12476302Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>REMOVAL .

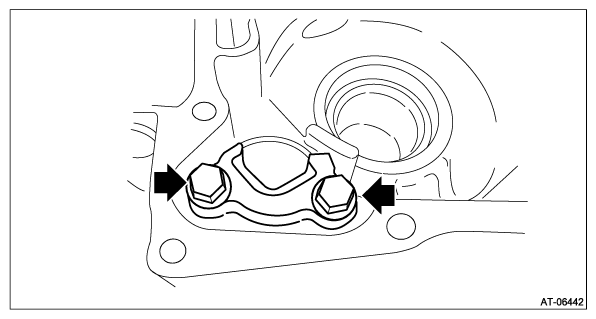

  11. Remove the parking support.
    G12476303Courtesy of SUBARU OF AMERICA, INC.
