Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

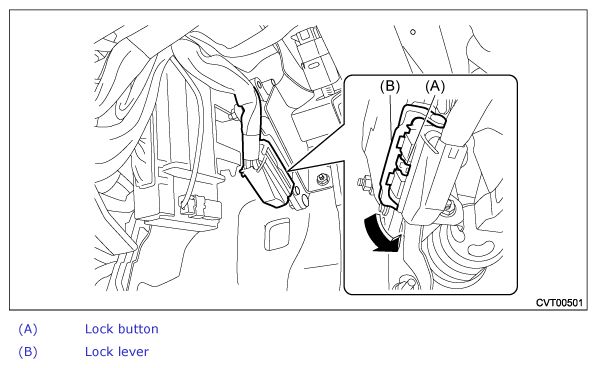

  2. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
    G12476211Courtesy of SUBARU OF AMERICA, INC.

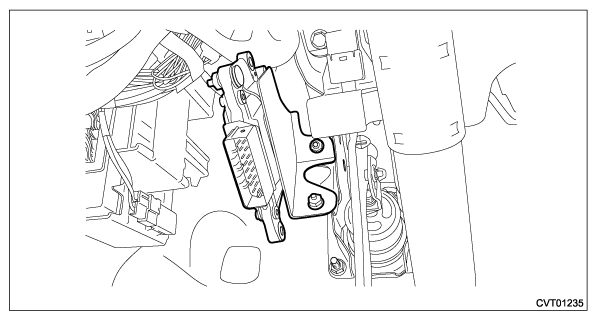

  3. Remove the TCM.
    G12476212Courtesy of SUBARU OF AMERICA, INC.

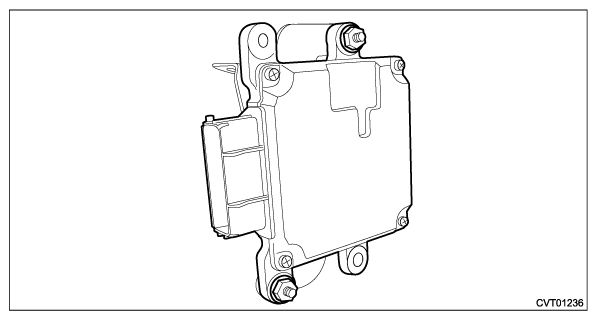

  4. Remove the TCM from the bracket.
    G12476213Courtesy of SUBARU OF AMERICA, INC.
