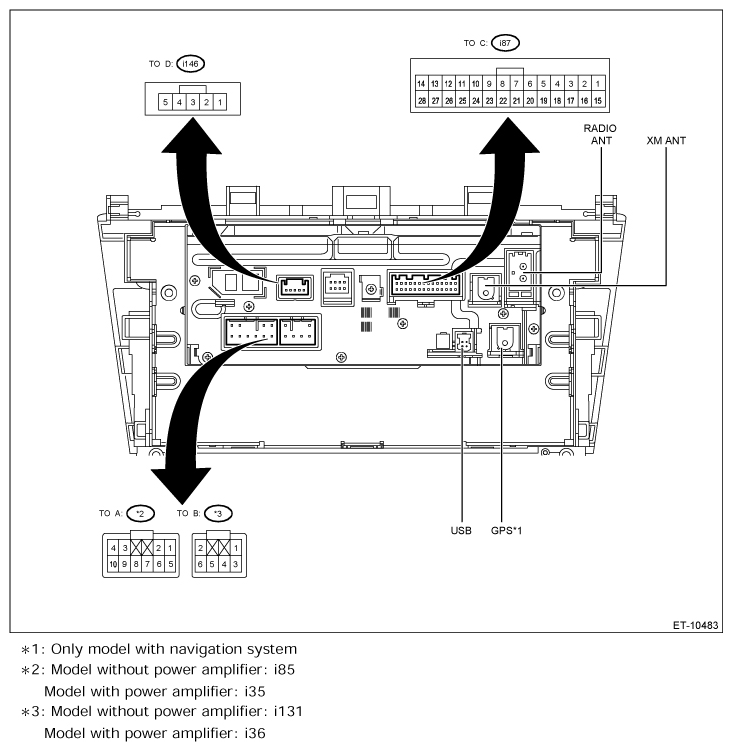

Unit Body

G12515526

Courtesy of SUBARU OF AMERICA, INC.

Power supply and speaker output terminal

Model without power amplifier

Terminal No.	Contents	Measuring condition	Measured value
(i85) No. 1	FRONT-RH (+)	-	-
(i85) No. 2	FRONT-LH (+)	-	-
(i85) No. 3 ←→ Chassis ground	ACC	ACC ON	11 - 15 V
(i85) No. 4 ←→ Chassis ground	+B	Always	11 - 15 V
(i85) No. 5	FRONT-RH (-)	-	-
(i85) No. 6	FRONT-LH (-)	-	-
(i85) No. 7 ←→ Chassis ground	GND	Always	0 V
(i85) No. 8	ANTENNA-ON	-	-
(i85) No. 9	N.C.	-	-
(i85) No. 10	ILLUMI (+)	-	-
(i131) No. 1	REAR-RH (+)	-	-
(i131) No. 2	REAR-LH (+)	-	-
(i131) No. 3	REAR-RH (-)	-	-
(i131) No. 4	N.C.	-	-
(i131) No. 5	ILLUMI (-)	-	-
(i131) No. 6	REAR-LH (-)	-	-

Model with power amplifier

Terminal No.	Contents	Measuring condition	Measured value
(i35) No. 1	FRONT-RH (+)	-	-
(i35) No. 2	FRONT-LH (+)	-	-
(i35) No. 3 ←→ Chassis ground	ACC	ACC ON	11 - 15 V
(i35) No. 4 ←→ Chassis ground	+B	Always	11 - 15 V
(i35) No. 5	FRONT-RH (-)	-	-
(i35) No. 6	FRONT-LH (-)	-	-
(i35) No. 7 ←→ Chassis ground	GND	Always	0 V
(i35) No. 8	ANTENNA-ON	-	-
(i35) No. 9	N.C.	-	-
(i35) No. 10	ILLUMI (+)	-	-
(i36) No. 1	N.C.	-	-
(i36) No. 2	INT+	-	-
(i36) No. 3	N.C.	-	-
(i36) No. 4	N.C./SLD2	-	-
(i36) No. 5	ILLUMI (-)	-	-
(i36) No. 6	INT (-)	-	-

Satellite switch and AUX input terminal for microphone, etc.

Terminal No.

Contents

Measuring condition

Measured value

(i87) No. 1

N.C.

-

-

(i87) No. 2

{REV}

-

-

(i87) No. 3

BRIGHT

-

-

(i87) No. 4

MACC

-

-

(i87) No. 5

MIC (+)

-

-

(i87) No. 6

MIC-DET

-

-

(i87) No. 7

N.C./TX1+ (for AMP communication)⁽¹⁾

-

-

(i87) No. 8

N.C./TX1- (for AMP communication)⁽¹⁾

-

-

(i87) No. 9

N.C.

-

-

(i87) No. 10

N.C.

-

-

(i87) No. 11

N.C.

-

-

(i87) No. 12

N.C.

-

-

(i87) No. 13

N.C.

-

-

(i87) No. 14

N.C.

-

-

(i87) No. 15 ←→ Chassis ground

{PKB}

At parking ON

1 V or less

(i87) No. 16

N.C./MUTE⁽¹⁾

-

-

(i87) No. 17 ←→ Chassis ground

{SPD}

When the tire is rotating

Pulse signal

(i87) No. 18

N.C.

-

-

(i87) No. 19

MIC (-)

-

-

(i87) No. 20

N.C.

-

-

(i87) No. 21

SW1

-

-

(i87) No. 22

SW2

-

-

(i87) No. 23

SWG

-

-

(i87) No. 24

N.C.

-

-

(i87) No. 25

AUX-DET

-

-

(i87) No. 26

AUX-R (+)

-

-

(i87) No. 27

AUX-LR (-)

-

-

(i87) No. 28

AUX-L (+)

-

-

⁽¹⁾	Model with power amplifier

Rearview camera

Terminal No.	Contents	Measuring condition	Measured value
(i146) No. 1 ←→ Chassis ground	CGND	Always	0 V
(i146) No. 2	CB+	-	-
(i146) No. 3	CV+	-	-
(i146) No. 4	CV-	-	-
(i146) No. 5	N.C.	-	-
